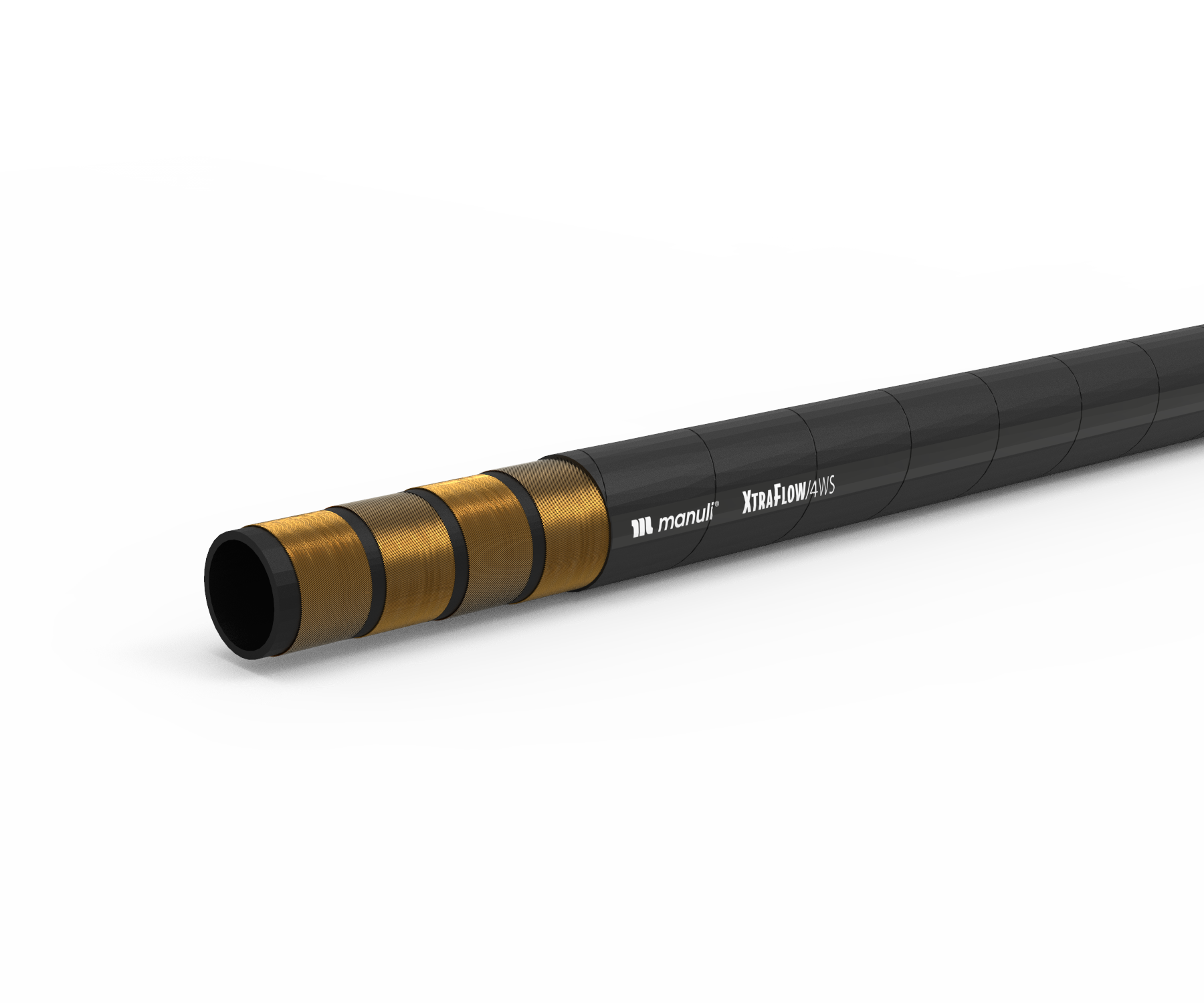

XTRAFLOW/4WS
HIGH FLOW RATES, OUTSTANDING ABRASION RESISTANCE
KEY FEATURES
• Low pressure drops even with high flow rates
• Extreme abrasion resistance
• High ozone and weather resistance
• Flame retardant and antistatic cover
• Superior pressure rating
• Structure robustness for tough handling
APPLICATIONS & FLUIDS
- General hydraulics with high flow rates, mine hydraulic return lines, long wall water lines
- Mineral oils, vegetable oils and synthetic ester based oils, glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
100 °C, 212 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Four high tensile steel spirals
COVER
S.H.A.R.C.
Synthetic rubber with very high abrasion, ozone and weather resistance
APPLICABLE SPECS
Manuli® Design
TYPE APPOVALS
CU-TR; MSHA; ABS; DNV-GL
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H10091063* | 63 | -40 | 2.1/2″ | 77.5 | 3.05 | 81.5 | 3.21 | 140 | 2,030 | 700 | 10,150 | 700 | 27.56 | 5,890 | 3.96 | SP+M05400-40 | – |
| H10091076* | 76 | -48 | 3″ | 87.8 | 3.46 | 92.2 | 3.63 | 105 | 1,520 | 525 | 7,610 | 700 | 27.56 | 5,367 | 3.61 | SP+M05400-48 | – |
| H10091089* | 89 | -56 | 3.1/2″ | 103.7 | 4.08 | 108.7 | 4.28 | 80 | 1,160 | 400 | 5,800 | 800 | 31.50 | 8,187 | 5.50 | SP+M05400-56 | – |
| H10091102* | 102 | -64 | 4″ | 120.0 | 4.72 | 126.0 | 4.96 | 35 | 500 | 140 | 2,030 | 900 | 35.43 | 10,210 | 6.86 | SP+M05400-64 | – |
