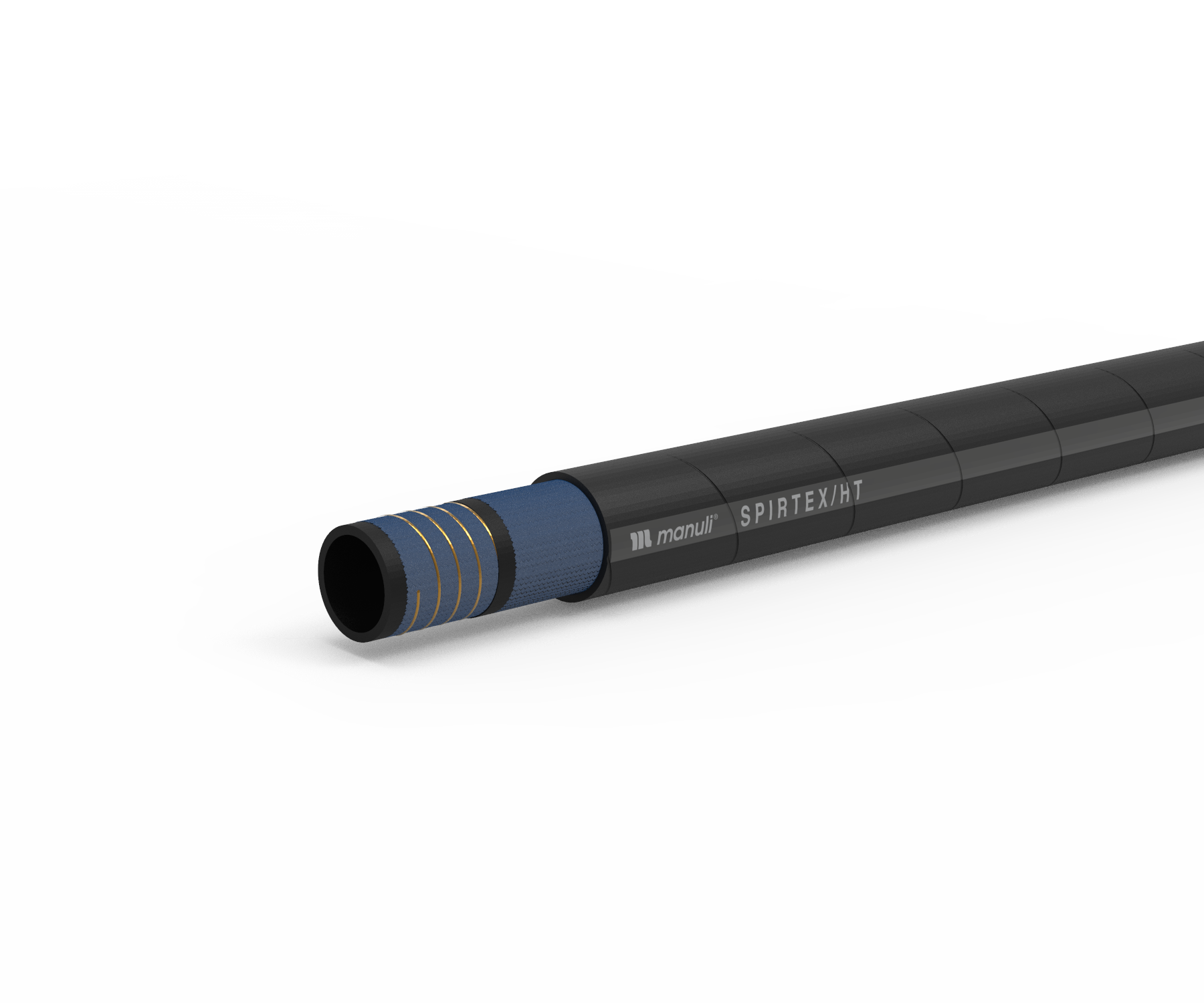

SPIRTEX/HT

HIGH PERFORMANCE SUCTION & RETURN HOSE, EXCEEDS SAE 100 R4

V

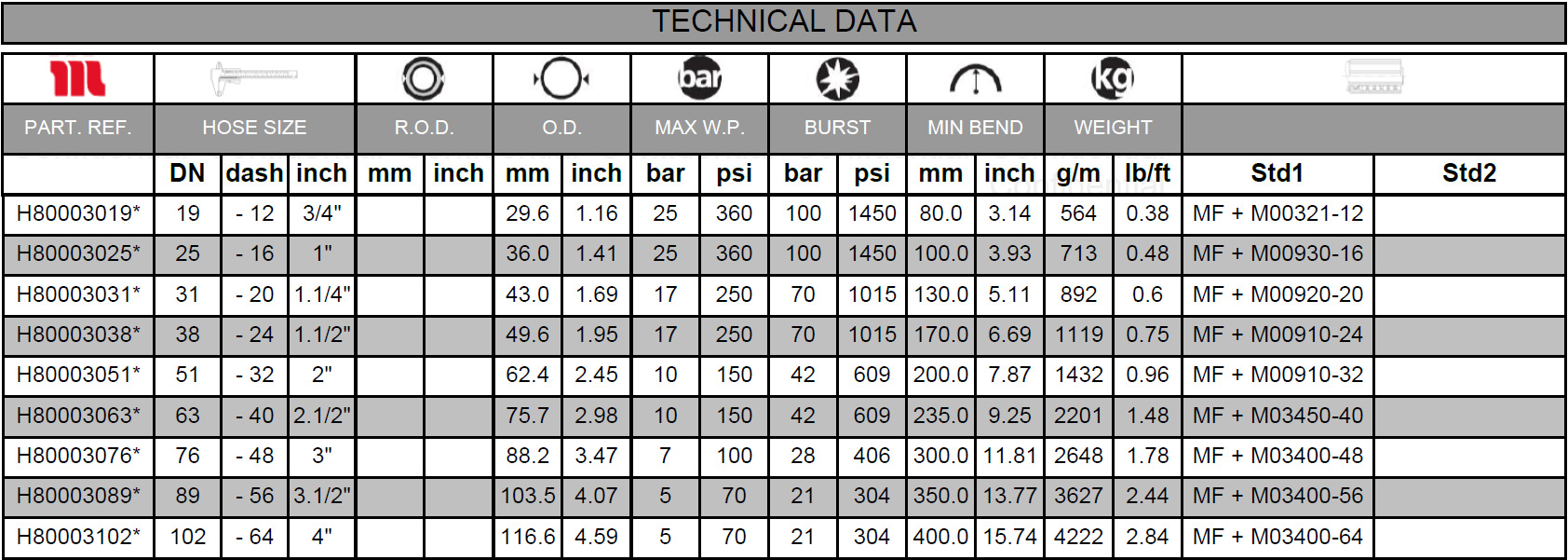

TECHNICAL DATA
# # # # # # # # #
PART REF. HOSE SIZE R.O.D O.D MAX. W.P BURST MIN. BEND WEIGHT FITTINGS
DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft Std 1 Std 2
H80003019* 19 -12 3/4″ – – 28.5 1.12 25 360 100 1,450 80 3.15 530 0.36 MF+M00321-12 –
H80003025* 25 -16 1″ – – 35.0 1.38 25 360 100 1,450 100 3.94 640 0.43 MF+M00930-16 –
H80003031* 31 -20 1.1/4″ – – 42.0 1.65 17 250 70 1,010 130 5.12 870 0.58 MF+M00920-20 –
H80003038* 38 -24 1.1/2″ – – 48.5 1.91 17 250 70 1,010 170 6.69 1,120 0.75 MF+M00910-24 –
H80003051* 51 -32 2″ – – 61.5 2.42 10 150 42 600 200 7.87 1,188 0.80 MF+M00910-32 –
H80003063* 63 -40 2.1/2″ – – 75.0 2.95 10 150 42 600 235 9.25 2,330 1.57 MF+M03400-40 –
H80003076* 76 -48 3″ – – 87.5 3.44 7 100 28 400 300 11.81 2,800 1.88 MF+M03400-48 –
H80003089* 89 -56 3.1/2″ – – 103.0 4.06 5 70 21 300 350 13.78 3,620 2.43 MF+M03400-56 –
H80003102* 102 -64 4″ – – 114.5 4.51 5 70 21 300 400 15.75 4,220 2.83 MF+M03400-64 –

KEY FEATURES

• Hardwall hose used for the suction and delivery of hydraulic oils
• Improved minimum bend radius
• Higher working pressure than SAE J517 100R4 spec.
• Long lasting in severe applications
• Resistance to Vacuum
• Special rubber compounds for high aging resistance
• Max. length: 60m

APPLICATIONS & FLUIDS

• Hydraulics: suction lines, return lines
• Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water

CONTINUOUS SERVICE TEMPERATURE RANGE

-40 °C, -40 °F
135 °C, 275 °F

TUBE

NBR synthetic rubber

REINFORCEMENT

High tensile synthetic cord, helix body wire

COVER

Weather and ozone resistant synthetic rubber, flame retardant with high heat resistance

APPLICABLE SPECS

SAE J517 100 R4, Manuli® Design; two-thirds of the SAE J517 100 R4 minimum bend radius

TYPE APPROVALS

CU-TR
