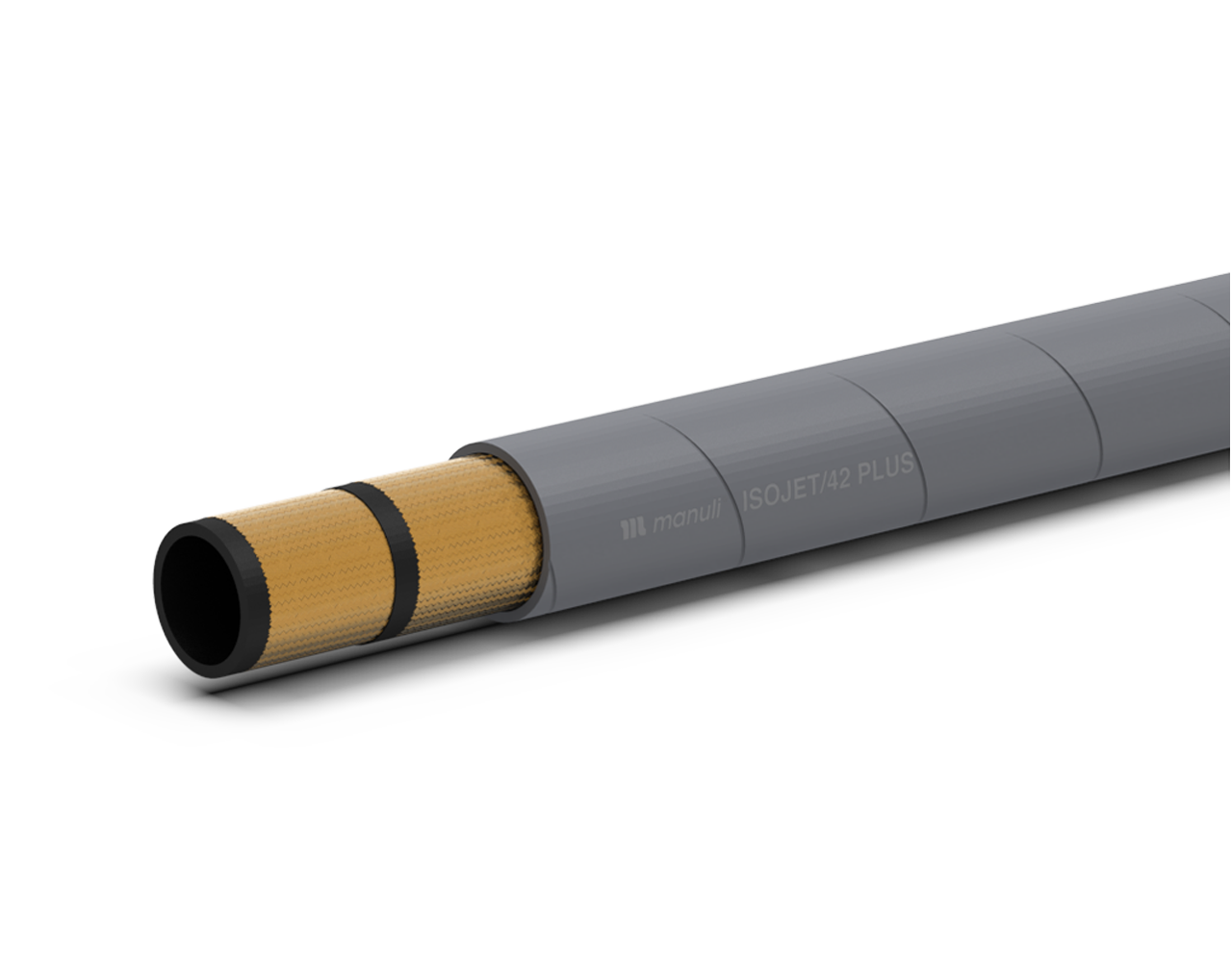

ISOJET/42 PLUS (GREY)
PRESSURE WASH - GREY VERSION

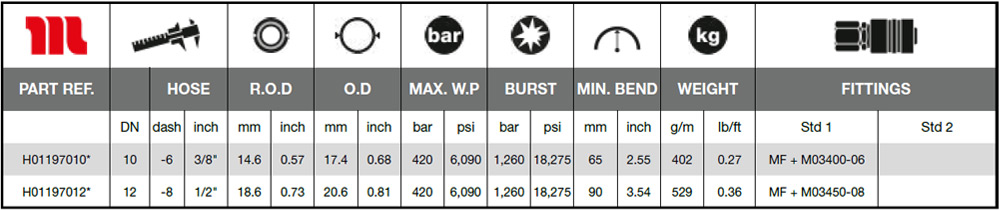

| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H01197010* | 10 | -6 | 3/8" | 14.6 | 0.57 | 17.4 | 0.68 | 420 | 6,090 | 1,260 | 18,275 | 65 | 2.55 | 402 | 0.27 | MF + M03400-06 | |
| H01197012* | 12 | -8 | 1/2" | 18.6 | 0.73 | 20.6 | 0.81 | 420 | 6,090 | 1,260 | 18,275 | 90 | 3.54 | 529 | 0.36 | MF + M03400-08 | |
KEY FEATURES
• Wrapped surface
• Indelible branding
• Compact structure: easy handling, reduced bend radius
• Good abrasion resistance
• Safety Factor 3:1
APPLICATIONS & FLUIDS
• Water-cleaning equipment, ideal for hobby and semi-professional machines
• Water, mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion
CONTINUOUS SERVICE TEMPERATURE RANGE
-10 °C, 15 °F
135 °C, 275 °F
TUBE
Water resistant synthetic rubber
REINFORCEMENT
Two high tensile steel braids
COVER
Weather resistant synthetic rubber
APPLICABLE SPECS
Manuli® Design
