TECHNICAL DATA | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
H01196006* | 6 | -4 | 1/4" | 9.9 | 0.38 | 12.7 | 0.5 | 280 | 4,060 | 840 | 12,183 | 50 | 1.96 | 190 | 0.13 | MF + M03300-04 | |
H01196010* | 10 | -6 | 3/8" | 13.3 | 0.52 | 16.1 | 0.63 | 280 | 4,060 | 840 | 12,183 | 65 | 2.55 | 271 | 0.18 | MF + M03300-06 |
KEY FEATURES
• Wrapped surface
• Indelible branding
• Compact structure: easy handling, reduced bend radius
• Good abrasion resistance
• Safety Factor 3:1
APPLICATIONS & FLUIDS
• Water-cleaning equipment, ideal for hobby and semi-professional machines
• Water, mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion
CONTINUOUS SERVICE TEMPERATURE RANGE
-10 °C, 15 °F
135 °C, 275 °F

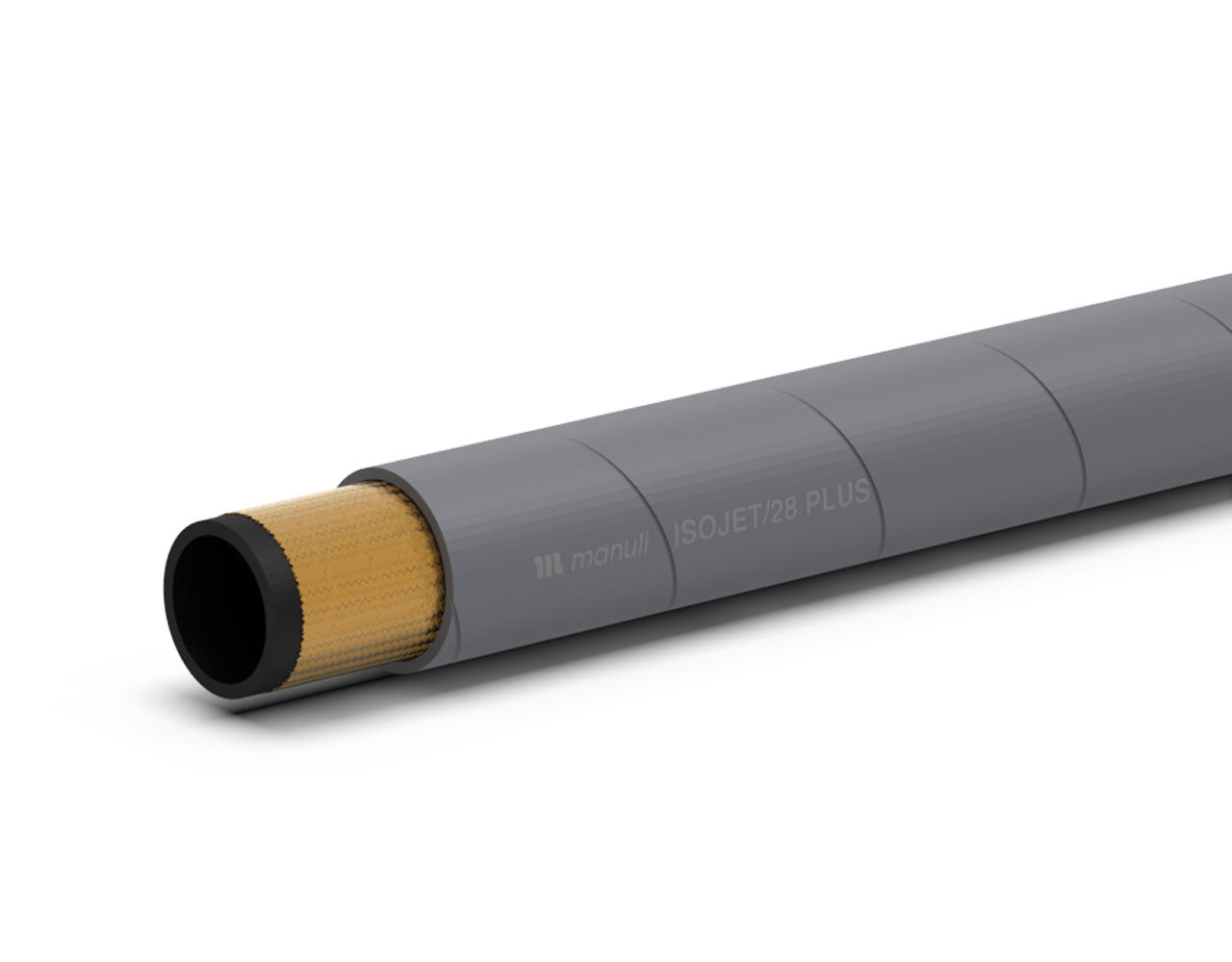

TUBE
Water resistant synthetic rubber
REINFORCEMENT
One high tensile steel braid
COVER
Weather resistant synthetic rubber
APPLICABLE SPECS
Manuli® Design
