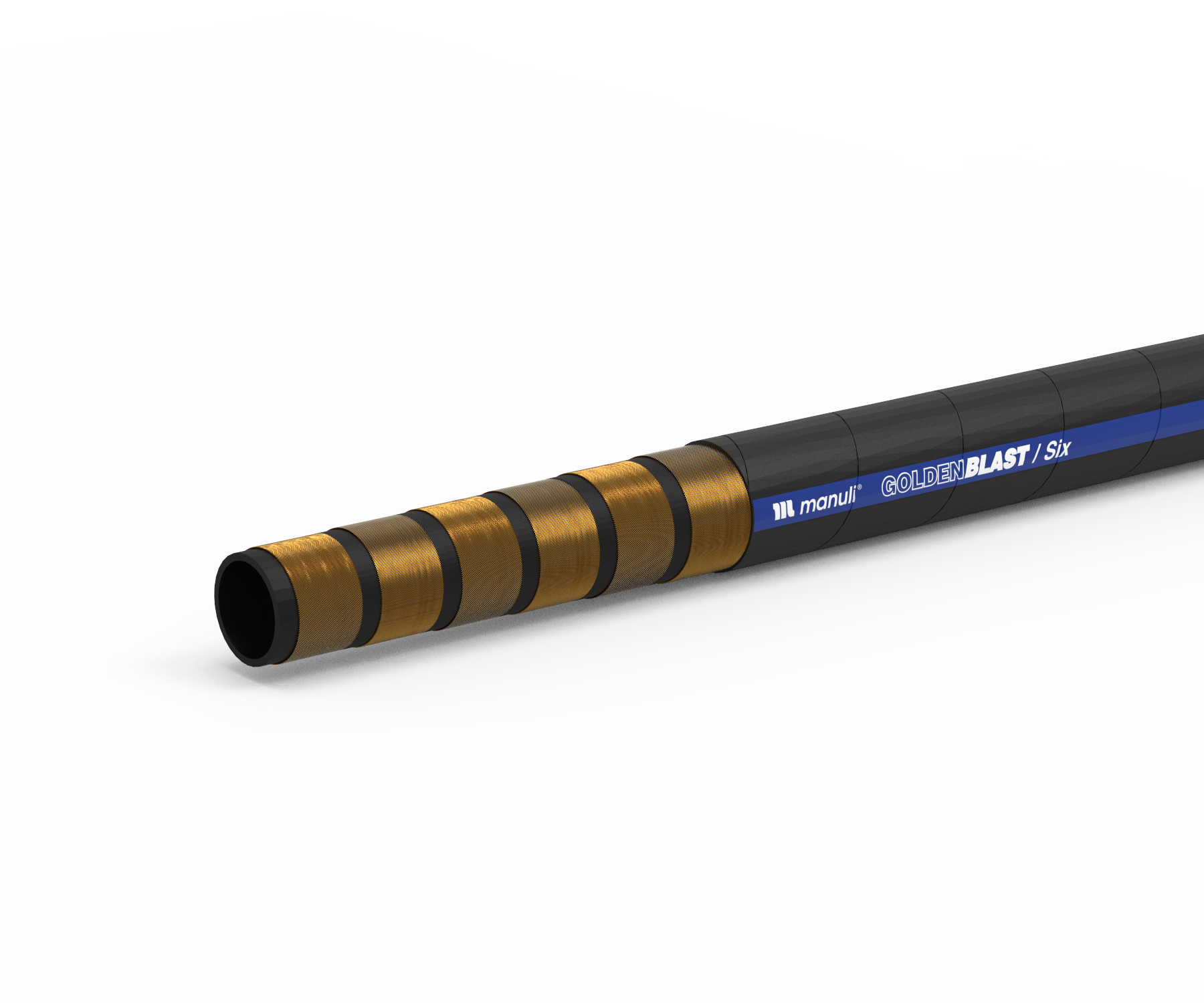

GOLDENBLAST/SIX
SAFE WATERBLAST TECHNOLOGY

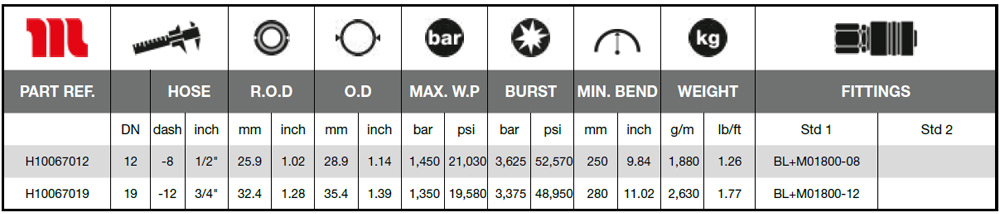

| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H10067012 | 12 | -8 | 1/2" | 25.9 | 1.02 | 28.9 | 1.14 | 1,450 | 21,030 | 3,625 | 52,570 | 250 | 9.84 | 1,880 | 1.26 | BL+M01800-08 | |
| H10067019 | 19 | -12 | 3/4" | 32.4 | 1.28 | 35.4 | 1.39 | 1,350 | 19,580 | 3,375 | 48,950 | 280 | 11.02 | 2,630 | 1.77 | BL+M01800-12 | |
KEY FEATURES
• Six wire spiral hose dedicated to severe applications with pressures up to 1450 bar
• Compactness, lightness and flexibility
• Safety factor 2,5:1 (accepted world standard as specified by RMA-USA, BFPA-UK, DIN-Germany, ISO 7751)
• High abrasion resistant cover
APPLICATIONS & FLUIDS
• Waterblasting, scale removing applications using extreme high working pressures:
• Building and industrial sectors (roadworks, removal of concrete from reinforced concrete structures safeguarding metal components);
• Scale removal ships hulls in shipyard;
• Dust elimination
• Water, water soap, emulsions
CONTINUOUS SERVICE TEMPERATURE RANGE
-10 °C, 15 °F
70 °C, 158 °F
TUBE
Water resistant synthetic rubber
REINFORCEMENT
Six high tensile steel spirals
COVER
Synthetic rubber with very high temperature, ozone and abrasion resistance
APPLICABLE SPECS
Manuli® Design, Australian Std. AS/NZS 4233.2
TYPE APPROVALS
CU-TR; MSHA
