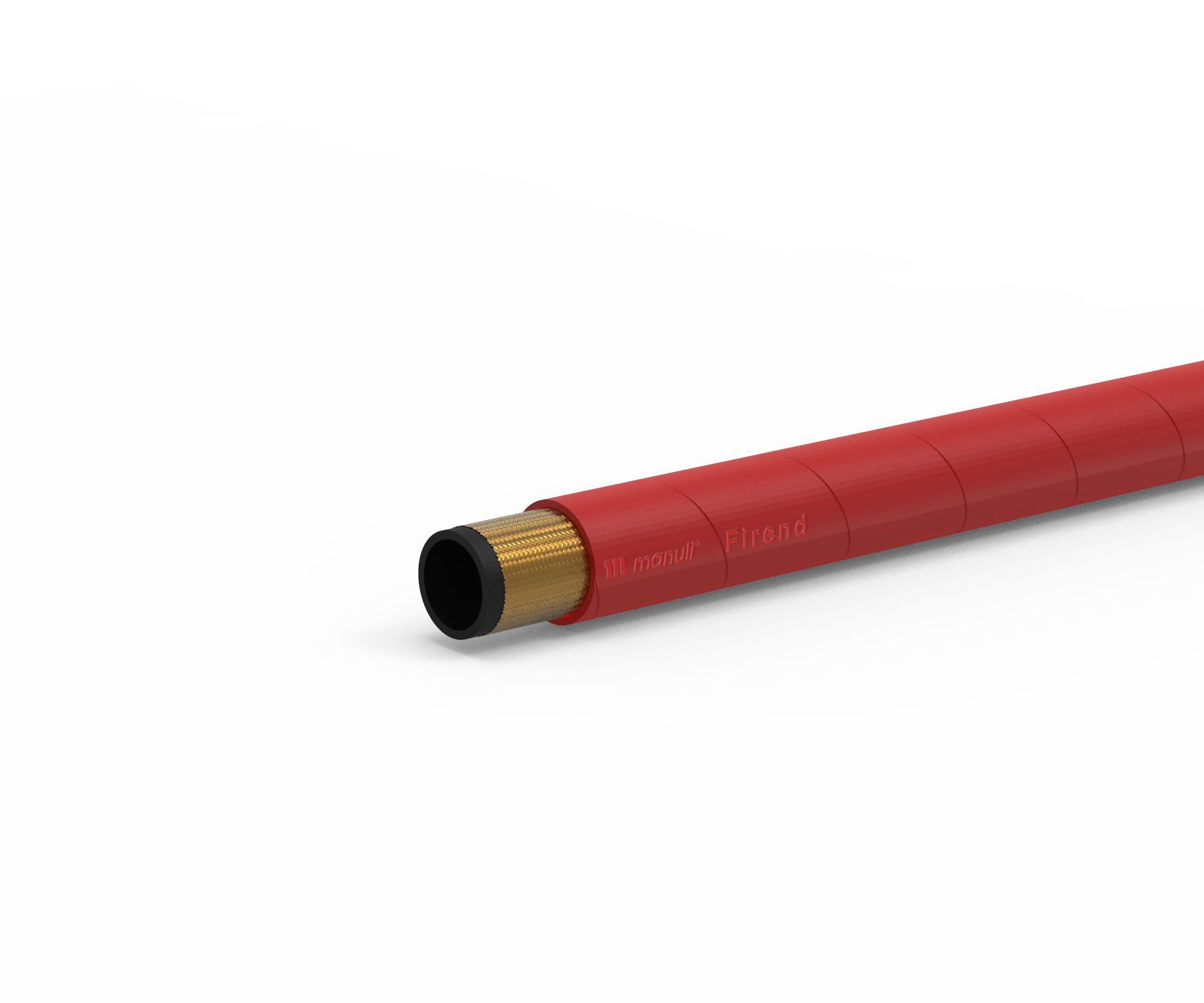

FIREND
FIRE SUPPRESSION SYSTEMS
KEY FEATURES
• SAE 100R1AT and ISO-1SN rated working pressures
• Flame retardant red cover
• Excellent performance for standard hydraulic applications
• Embossed indelible branding
• No skive MF2000 (two-pieces) and MF3000 (one-piece) fittings
APPLICATIONS & FLUIDS
- Use in fire suppression systems of off-road vehicles, mining equipment, stationary engines. The hose present red cover for easy identification in the fire suppression system
- Mineral oils, vegetable oils and synthetic ester based oils, glycols and polyglycols, mineral oils in aqueous emulsion, water, water based fire extinguishing agents
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
100 °C, 212 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
One high tensile steel wire braid
COVER
Red synthetic rubber with high ozone, abrasion and weather resistance
APPLICABLE SPECS
ISO 1436-1SN; SAE J517 Type 100R1AT; EN 853-1SN
TYPE APPOVALS
MSHA; CU-TR
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H01124006* | 6 | -4 | 1/4″ | 11.0 | 0.43 | 13.0 | 0.51 | 225 | 3,260 | 900 | 13,050 | 100 | 3.94 | 220 | 0.15 | MF+M03400-04 | OPF-04 |
| H01124010* | 10 | -6 | 3/8″ | 15.0 | 0.59 | 17.0 | 0.67 | 180 | 2,610 | 720 | 10,440 | 127 | 5.00 | 325 | 0.22 | MF+M03400-06 | OPF-06 |
| H01124012* | 12 | -8 | 1/2″ | 18.1 | 0.71 | 20.1 | 0.79 | 160 | 2,320 | 640 | 9,280 | 178 | 7.01 | 410 | 0.28 | MF+M03400-08 | OPF-08 |
| H01124019* | 19 | -12 | 3/4″ | 25.3 | 1.00 | 27.9 | 1.10 | 105 | 1,520 | 420 | 6,090 | 240 | 9.45 | 660 | 0.44 | MF+M03400-12 | OPF-12 |
| H01124025* | 25 | -16 | 1″ | 33.1 | 1.30 | 35.7 | 1.41 | 88 | 1,270 | 350 | 5,070 | 300 | 11.81 | 980 | 0.66 | MF+M03400-16 | – |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
