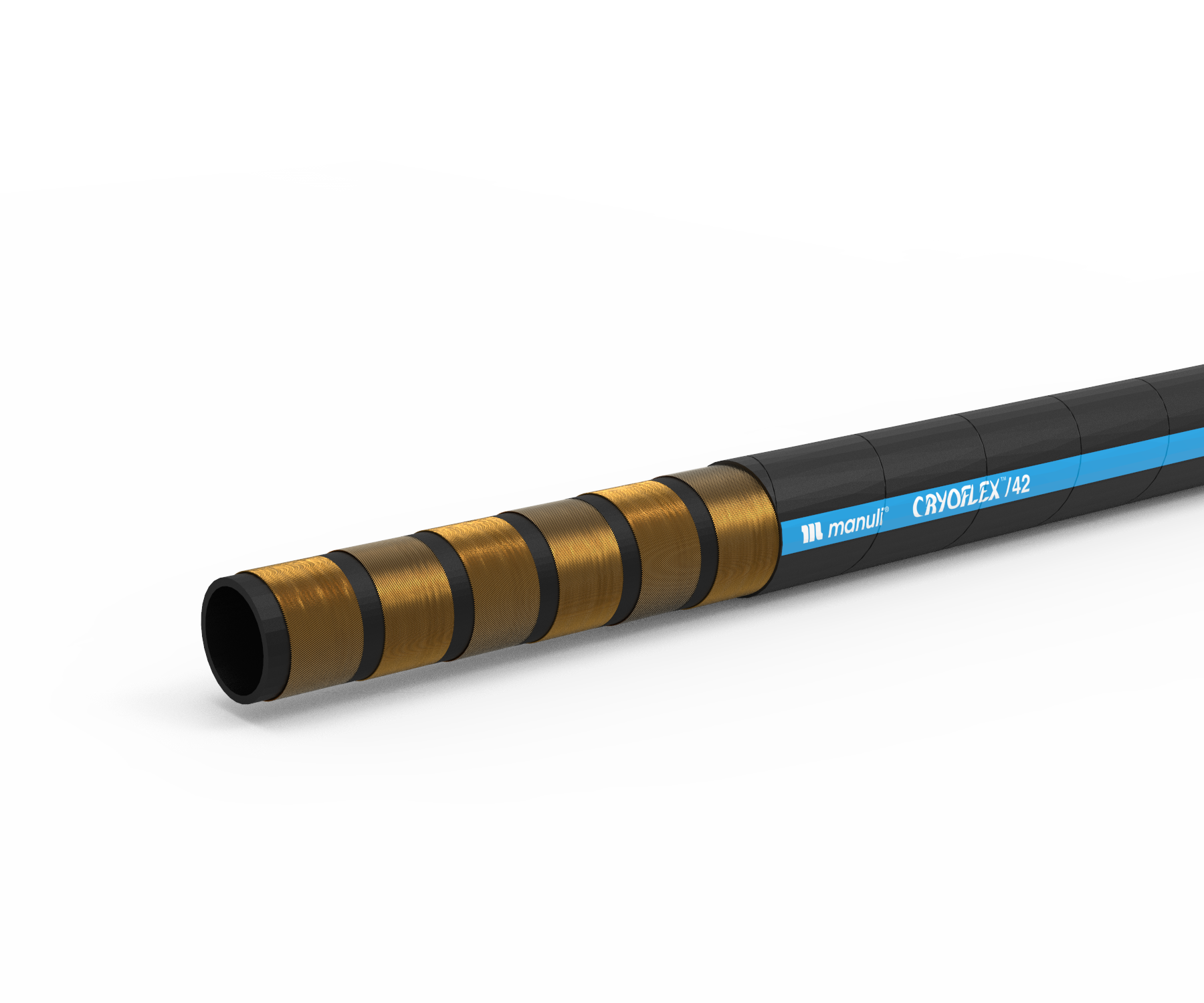

CRYOFLEX/42
EXTREME COLD ENVIRONMENTS
KEY FEATURES
• Good flexibility at very low temperatures
• Bend radius which exceeds the standard requirements by -30% to -50%
• Easy mounting in any installation
• High impulse resistance according to ISO 18752
• Weight saving of 20% vs. traditional R15 hose construction
• No-skive fitting solution available
• Isobaric pressure rating for easy selection and product management
APPLICATIONS & FLUIDS
- High pressure hydraulic lines for general hydraulics in extreme cold environment
- Applications with installation constraints (short assemblies, compact spaces, low bend radii etc.)
- Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-60 °C, -76 °F
100 °C, 212 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Four high tensile steel spirals (DN 19-25). Six high tensile steel spirals (DN 31-51)
COVER
STRONG – TYPE “SC”
Synthetic rubber with high abrasion, ozone, weather and heat resistance and an extended operational temperature range
APPLICABLE SPECS
ISO 18752-B Ext.
TYPE APPOVALS
MSHA; CU-TR
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H10123019* | 19 | -12 | 3/4” | 27.7 | 1.09 | 30.2 | 1.19 | 420 | 6,090 | 1,680 | 24,360 | 150 | 5.91 | 1,281 | 0.86 | IP+M01500-12 | SP+M05400-12 |
| H10123025* | 25 | -16 | 1” | 35.0 | 1.38 | 37.5 | 1.48 | 420 | 6,090 | 1,680 | 24,360 | 210 | 8.27 | 2,004 | 1.35 | IP+M01500-16 | SP+M05400-16 |
| H10123031* | 31 | -20 | 1.1/4” | 46.3 | 1.82 | 49.5 | 1.95 | 420 | 6,090 | 1,680 | 24,360 | 260 | 10.24 | 3,665 | 2.46 | IP+M01600-20 | – |
| H10123038* | 38 | -24 | 1.1/2” | 53.2 | 2.09 | 56.4 | 2.22 | 420 | 6,090 | 1,680 | 24,360 | 310 | 12.20 | 4,418 | 2.97 | IP+M01600-24 | – |
| H10123051* | 51 | -32 | 2” | 68.9 | 2.71 | 72.4 | 2.85 | 420 | 6,090 | 1,680 | 24,360 | 500 | 19.69 | 7,302 | 4.91 | IS+M02700-32 | – |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
