Technical Specifications:
Suction & delivery for chemicals, petroleum and food-stuff as per EN 12115 specifications. Hose is FDA approved.
WORKING PRESSURE: 16 bar / 240 psi.

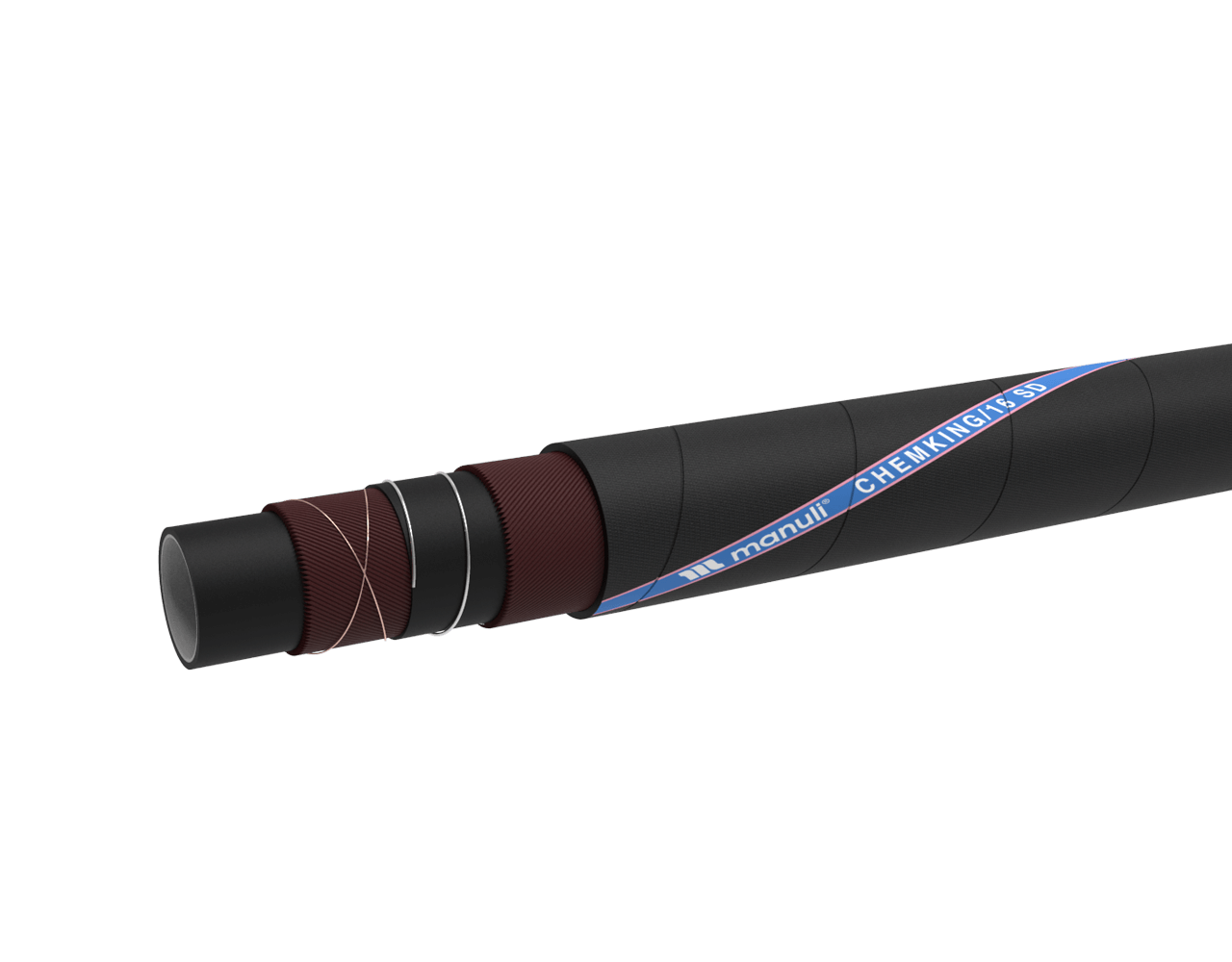

TUBE: White, glossy, non-conductive FEP.
REINFORCEMENT: High tensile synthetic cord and steel helix body wire with 2 crossing copper wires for grounding.
COVER: Black, synthetic CR rubber; fireproof; anti-static (R<106 Ohm/m); chemical, ozone and weathering resistant. Mylar layline for positive, permanent identification.
FEATURES: Hardwall suction and delivery structure; Compact, lightweight and flexible; Highly robust hose structure; Long lasting in severe applications.
Max. length: 61m
APPLICABLE SPECS: EN 12115 (Grade M) / TRbF / FDA
TEMPERATURE RANGE: From -50°C to +170°C (-58°F to +338°F).

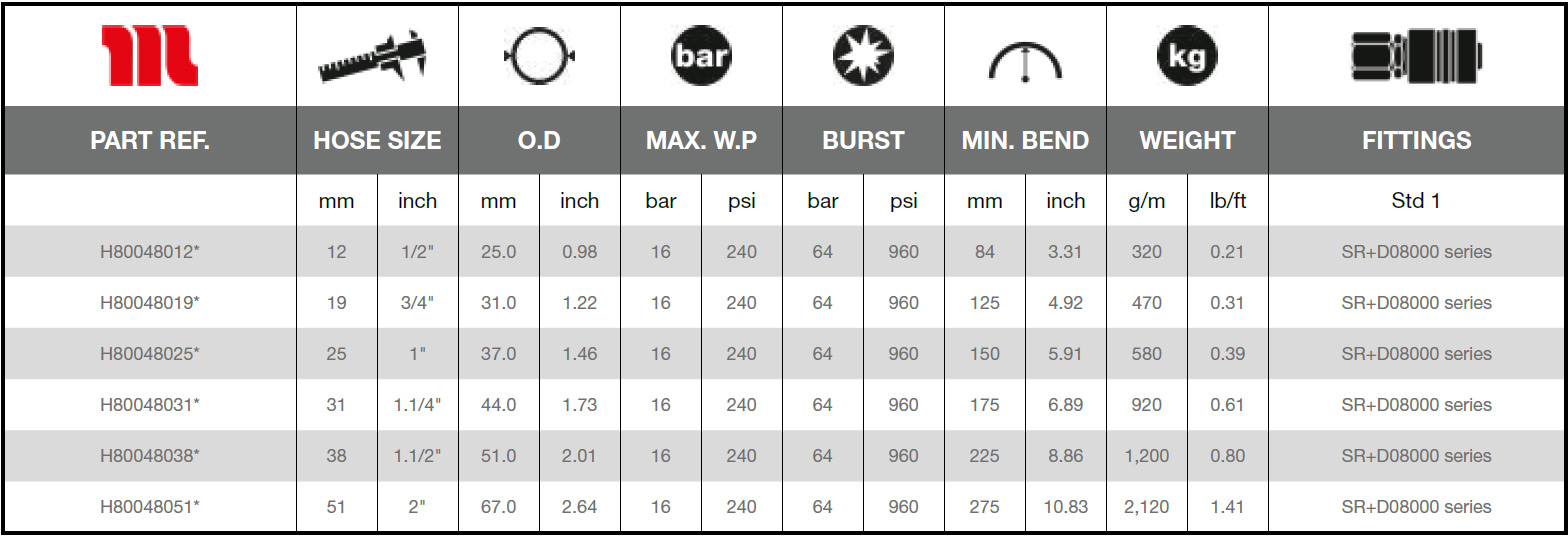

CHEMKING/16 SD | MATCH COUPLING SERIES | ||
PART NO | HOSE SIZE | TWO-PIECE | |
HOSE | DN | DASH | SKIVE |
H80048012 | 12 | -08 | SR+D08000 SERIES |
H80048019 | 19 | -12 | SR+D08000 SERIES |
H80048025 | 25 | -16 | SR+D08000 SERIES |
H80048031 | 31 | -20 | SR+D08000 SERIES |
H80048038 | 38 | -24 | SR+D08000 SERIES |
H80048051 | 51 | -32 | SR+D08000 SERIES |
