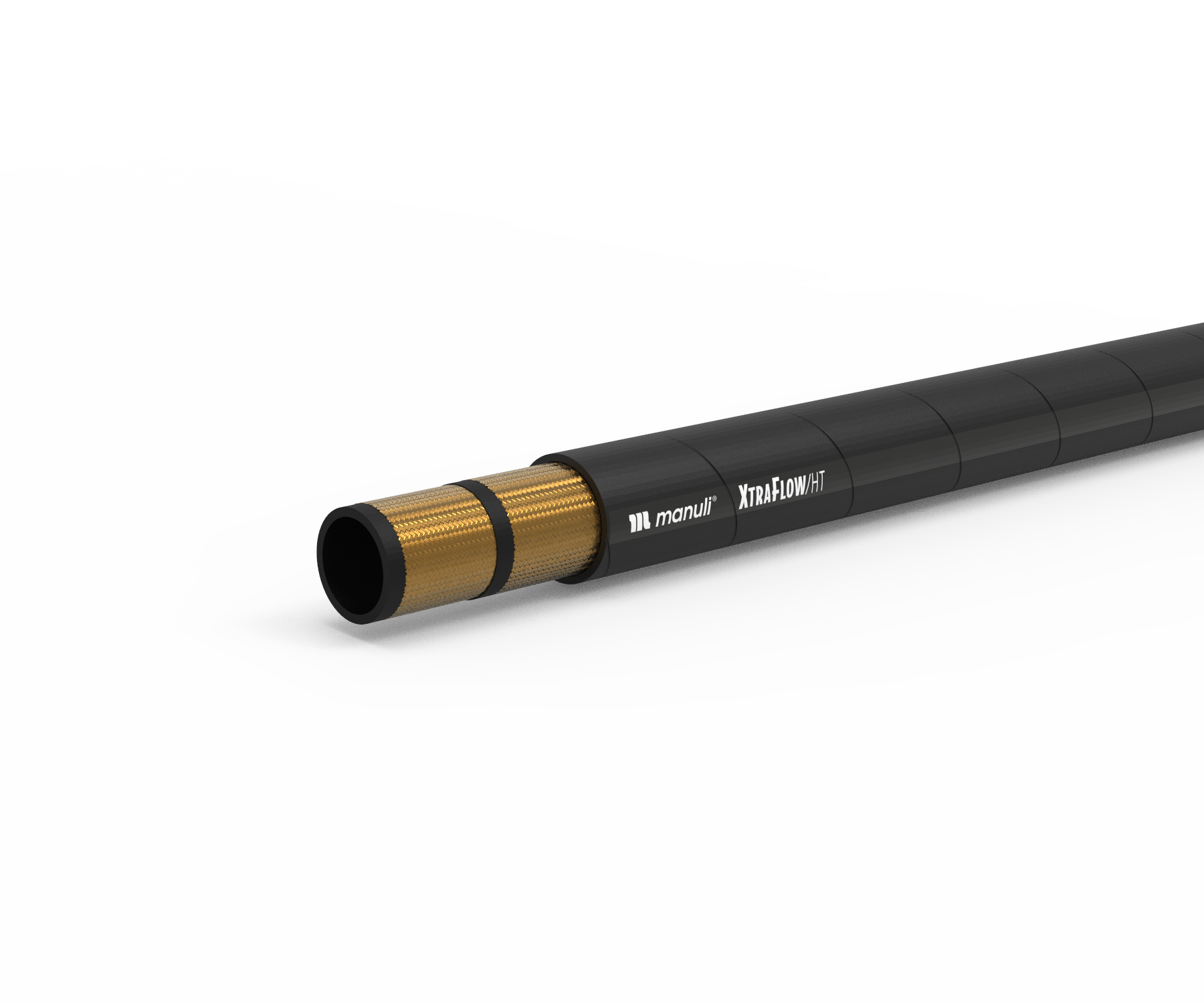

XTRAFLOW/HT
HIGH TEMPERATURE SUCTION & RETURN LINES
KEY FEATURES
• Vacuum resistance exceeding SAE 100R4 performance
• Extreme high temperature and heat aging resistance
• High flow rates
• Reduced bend radii compared to SAE 100R4
APPLICATIONS & FLUIDS
- Suction and return lines in hydraulic systems with high temperature fluids, low pressure hydraulic systems in mining equipment.
- Mineral oils, glycols and polyglycols, transmission fluids, mineral oils in aqueous emulsion (up to 212°F 100°C), air with oil vapours.
CONTINUOUS SERVICE TEMPERATURE RANGE
-55 °C, -67 °F
135 °C, 275 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Two high tensile steel braids
COVER
STANDARD – TYPE “XT”
Synthetic rubber with high ozone, weather and heat resistance
APPLICABLE SPECS
Manuli® Design
TYPE APPOVALS
CU-TR; MSHA; ABS; DNV-GL
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H01128063* | 63 | -40 | 2.1/2″ | 75.8 | 2.98 | 78.5 | 3.09 | 35 | 500 | 140 | 2,030 | 254 | 10.00 | 3,589 | 2.41 | MF+M03400-40 | – |
| H01128076* | 76 | -48 | 3″ | 87.8 | 3.46 | 90.5 | 3.56 | 35 | 500 | 140 | 2,030 | 355 | 13.98 | 3,291 | 2.21 | MF+M03400-48 | – |
| H01128089* | 89 | -56 | 3.1/2″ | 102.2 | 4.02 | 106.0 | 4.17 | 35 | 500 | 140 | 2,030 | 475 | 18.70 | 5,708 | 3.84 | MF+M03400-56 | – |
