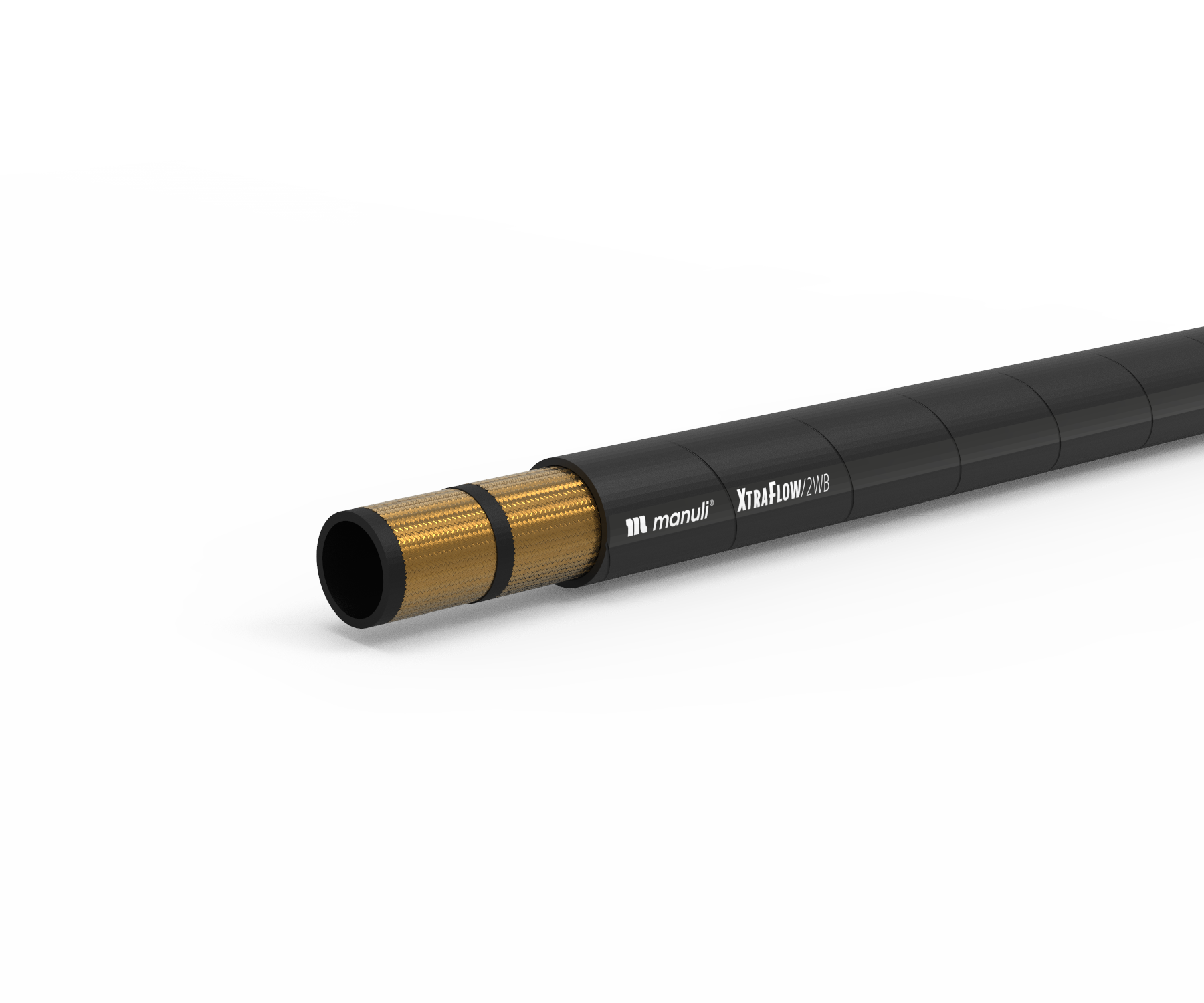

XTRAFLOW/2WB
HIGH FLOW RATES, LOW PRESSURE DROPS
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H01129063* | 63 | -40 | 2.1/2" | 75.8 | 2.98 | 78.5 | 3.09 | 105 | 1,520 | 420 | 6,090 | 510 | 20.08 | 3,531 | 2.37 | SP+M05400-40 | – |
| H01129076* | 76 | -48 | 3" | 89.0 | 3.50 | 93.6 | 3.69 | 80 | 1,160 | 320 | 4,640 | 510 | 20.08 | 4,976 | 3.34 | SP+M05400-48 | – |
| H01129089* | 89 | -56 | 3.1/2" | 102.2 | 4.02 | 107.4 | 4.23 | 35 | 500 | 140 | 2,030 | 710 | 27.95 | 5,530 | 3.72 | SP+M05400-56 | – |
KEY FEATURES
• Low pressure drops even with high flow rates
• Superior abrasion resistance
• High ozone and weather resistance
• Flame resistance and electrical antistatic properties of the cover
• High working pressure associated to high flow rates
• Vacuum resistance with SAE 100 R4 performance
APPLICATIONS & FLUIDS
• Medium-Low pressure hydraulic lines with high flow rates, specific installations with severe abrasion conditions, marine applications, underground and open pit mining, return and suction lines
• Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
100 °C, 212 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Two high tensile steel braids
COVER
S.H.A.R.C.
Synthetic rubber with very high abrasion, ozone and weather resistance
APPLICABLE SPECS
Extension EN 857-2SC, ISO 11237-2SC
TYPE APPROVALS
CU-TR; MSHA; ABS; DNV-GL; FRAS; MA
