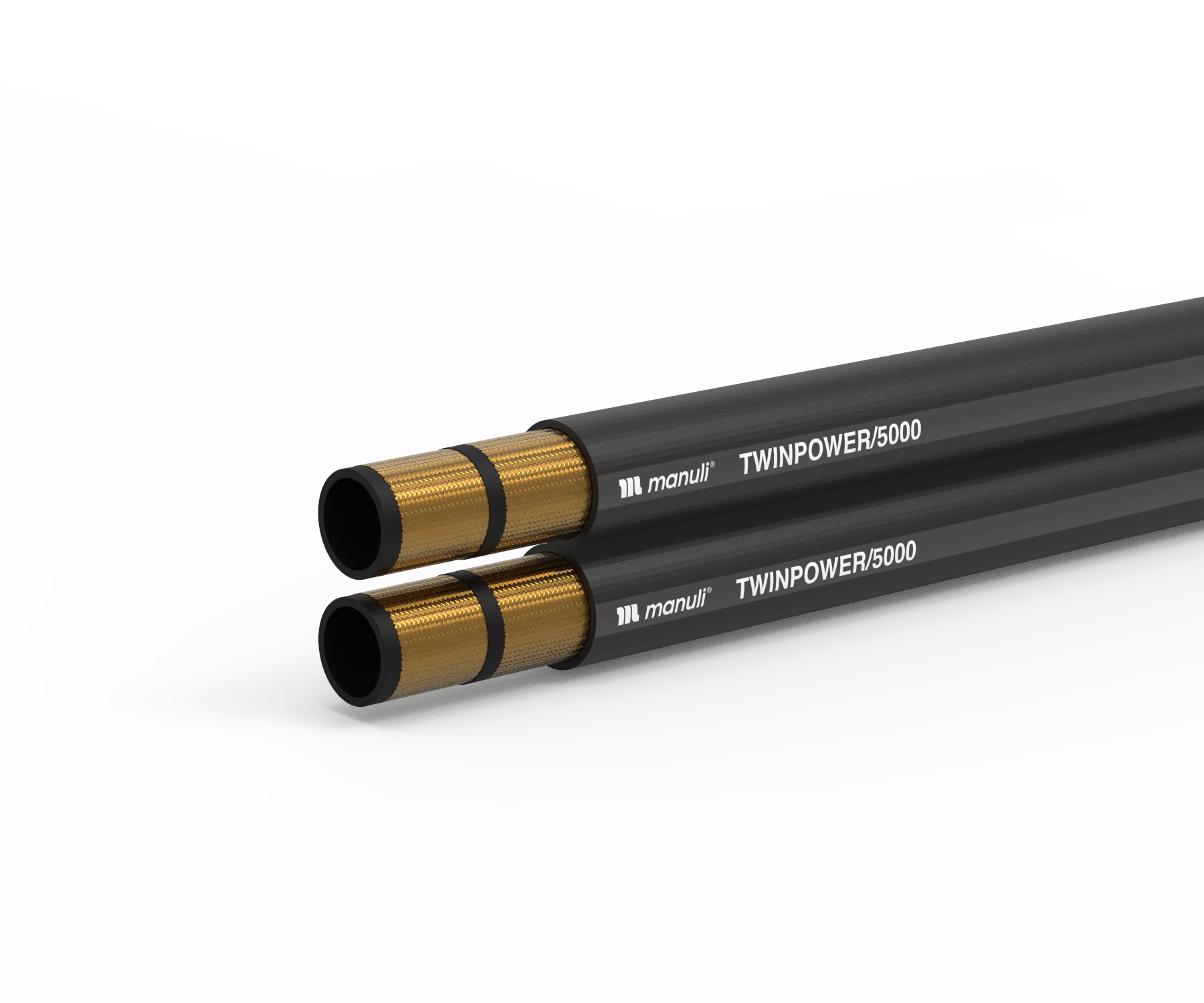

TWINPOWER/5000

EASY INSTALLATION FOR OEMS

TECHNICAL DATA

PART REF.	HOSE SIZE			R.O.D		O.D		MAX. W.P		BURST		MIN. BEND		WEIGHT		FITTINGS
	DN	dash	inch	mm	inch	mm	inch	bar	psi	bar	psi	mm	inch	g/m	lb/ft	Std 1	Std 2
H01120008*	8	-5	5/16"	12.9	0.51	15.3	0.60	350	5,070	1,400	20,300	55	2.17	682	0.46	MF+M00120-05	–
H01120010*	10	-6	3/8"	15.0	0.59	17.6	0.69	350	5,070	1,400	20,300	65	2.56	830	0.56	MF+M00120-06	–
H01120012*	12	-8	1/2"	18.6	0.73	21.6	0.85	350	5,070	1,400	20,300	80	3.15	1,190	0.80	MF+M00120-08	–

KEY FEATURES

• Compact hose structure and reduced bend radius
• Isobaric rating exceeding international specifications
• Smooth cover hose ensuring user friendly installation inside the booms
• Unique hose assembly solution for pressure and discharge line on the same body valve
• Reduced installation time compared to two separated assembly hose solutions
• Reduced risk of abrasion of the line inside the booms due to twin hose alignment
• Elimination of clamps to connect the two hose lines, with consequent easiness of insertion
• Higher abrasion resistant and flame retardant MSHA approved cover
• Warehouse/logistic optimization with reduced codes in stock

APPLICATIONS & FLUIDS

• Hydraulics: hose range dedicated to aerial lifts, platforms, forklift trucks and telescopic booms applications
• Mineral oils, vegetable oils and synthetic ester based oils, glycols and polyglycols, mineral oils in aqueous emulsion, water

CONTINUOUS SERVICE TEMPERATURE RANGE

-40 °C, -40 °F
100 °C, 212 °F

TUBE

Synthetic rubber

REINFORCEMENT

Two high tensile steel wire braids

COVER

STRONG – TYPE “SD”
Synthetic rubber with high abrasion, ozone, weather and heat resistance

APPLICABLE SPECS

Exceeds ISO 11237 2SC/R16; EN 857 2SC; SAE J517 Type 100R16

TYPE APPROVALS

CU-TR; MSHA
