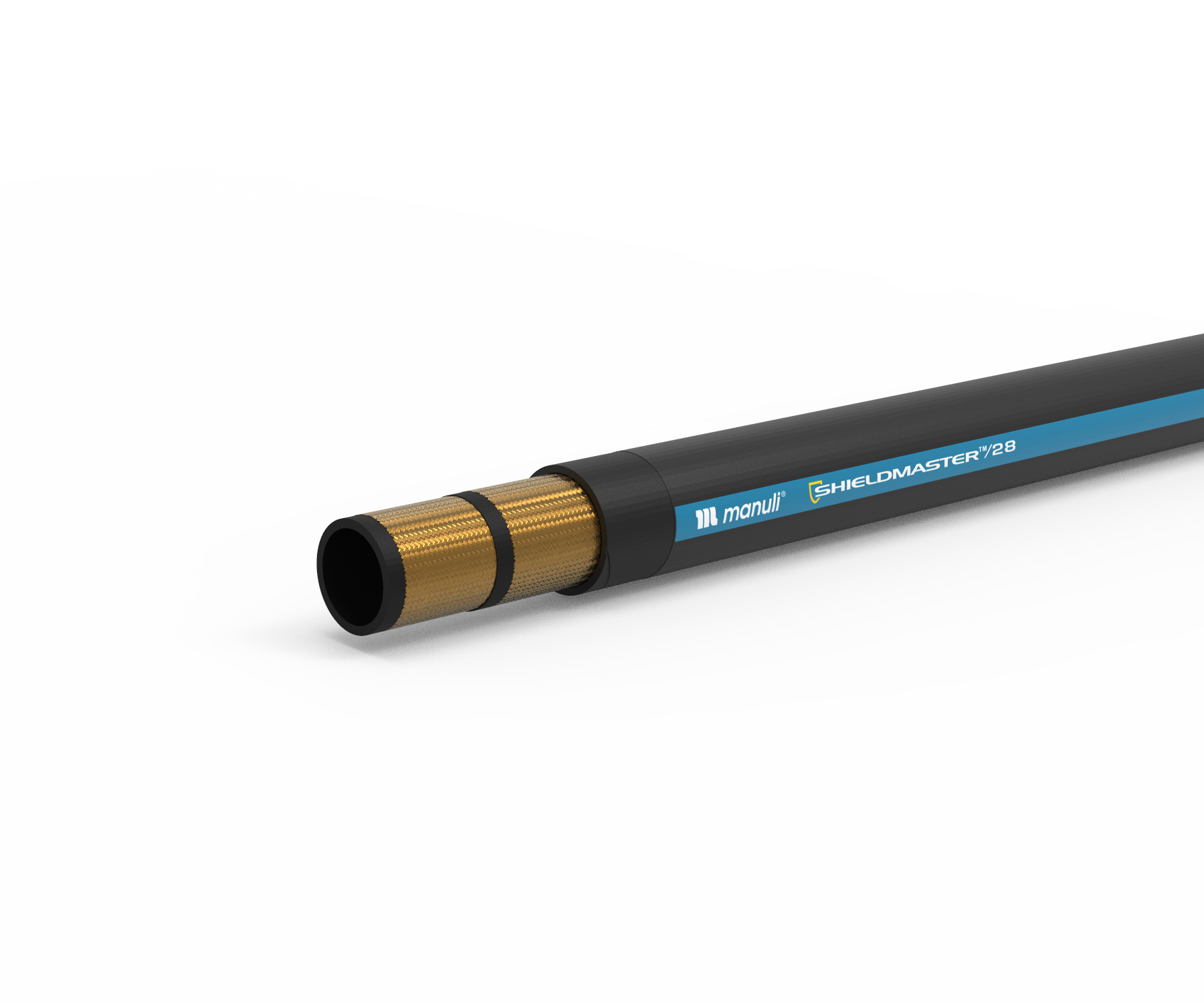

TECHNICAL DATA | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
H01155006* | 6 | -4 | 1/4” | 11.6 | 0.46 | 13.6 | 0.54 | 280 | 4,060 | 1,120 | 16,240 | 50 | 1.97 | 272 | 0.18 | MF+M00120-04 | OPF-04 |
H01155008* | 8 | -5 | 5/16” | 12.9 | 0.51 | 14.9 | 0.59 | 280 | 4,060 | 1,120 | 16,240 | 55 | 2.17 | 299 | 0.20 | MF+M00120-05 | OPF-05 |
H01155010* | 10 | -6 | 3/8” | 15.4 | 0.61 | 17.4 | 0.69 | 280 | 4,060 | 1,120 | 16,240 | 63 | 2.48 | 397 | 0.27 | MF+M00120-06 | OPF-06 |
H01155012* | 12 | -8 | 1/2” | 18.5 | 0.73 | 20.5 | 0.81 | 280 | 4,060 | 1,120 | 16,240 | 80 | 3.15 | 507 | 0.34 | MF+M00120-08 | OPK-08 |
H01155016* | 16 | -10 | 5/8”” | 22.7 | 0.89 | 24.7 | 0.97 | 280 | 4,060 | 1,120 | 16,240 | 90 | 3.54 | 731 | 0.49 | MF+M00120-10 | OPK-10 |
H01155019* | 19 | -12 | 3/4” | 27.1 | 1.07 | 29.3 | 1.15 | 280 | 4,060 | 1,120 | 16,240 | 120 | 4.72 | 1,058 | 0.71 | MF+M00120-12 | OPK-12 |
H01155025* | 25 | -16 | 1” | 34.1 | 1.34 | 36.5 | 1.44 | 280 | 4,060 | 1,120 | 16,240 | 150 | 5.91 | 1,536 | 1.03 | MF+M00930-16 | OPK-16 |
H01155031* | 31 | -20 | 1.1/4” | 41.7 | 1.64 | 44.5 | 1.75 | 280 | 4,060 | 1,120 | 16,240 | 210 | 8.27 | 2,171 | 1.46 | MF+M00920-20 | OPK-20 |
H01155051* | 51 | -32 | 2” | 63.9 | 2.51 | 67.5 | 2.65 | 280 | 4,060 | 1,120 | 16,240 | 350 | 13.77 | 4,716 | 3.17 | IP+M01500-32 | – |
• Outstanding abrasion and ozone resistance
• Compact and light structures
• Very low bend radius makes the product suitable for difficult installations
• Easy assembling and mounting operations (no protection sleeves required)
• Isobaric pressure rating
• Suitable for very cold environments
• Medium and high pressure hydraulic lines
• High resistance to abrasion conditions, including rubbing among hoses in bunches, alternative to spring guards, easy cleaning in dusty environments
• For severe environmental conditions, long resistance to ozone and weathering, cold temperatures, dirty industrial environments
• Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
-46 °C, -50 °F
100 °C, 212 °F
Oil resistant synthetic rubber
Two high tensile steel braids (DN 6-19); Four high tensile steel spirals (DN 25-31)
SHIELD
Composite bi-layer structure with outstanding abrasion and ozone resistance
ISO 18752 Type B
MSHA, FRAS (requested); CU-TR
Applications with material projections or winding on low bend radius pulley systems should be field tested before use; high abrasion resistant rubber cover hoses are appropriate in most cases
