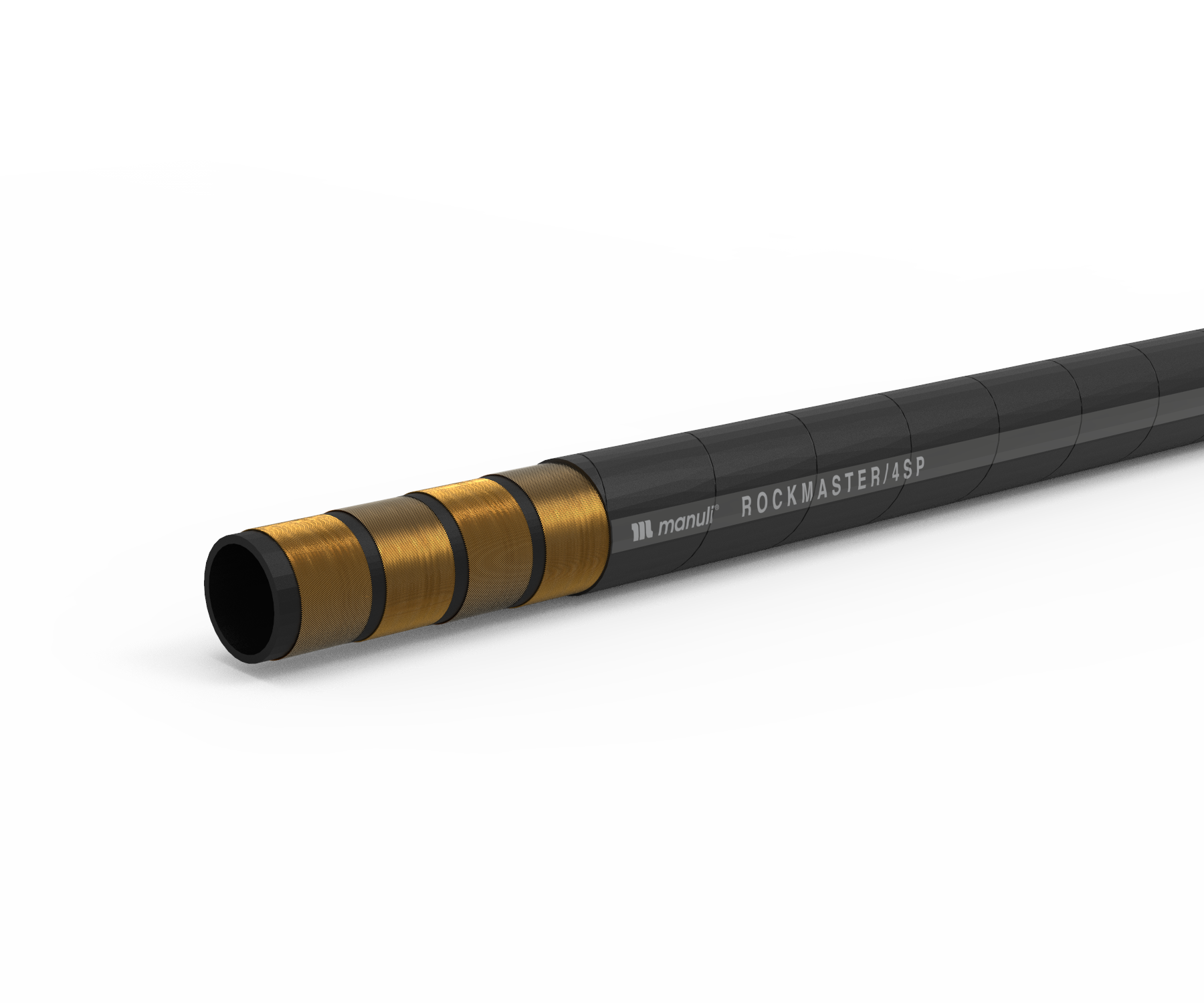

ROCKMASTER/4SP
ABRASION, WEATHER AND HEAT RESISTANCE
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H10008006* | 6 | -4 | 1/4" | 14.7 | 0.58 | 17.6 | 0.69 | 485 | 7,030 | 2,400 | 34,800 | 125 | 4.92 | 590 | 0.40 | MF+M00910-04 | – |
| H10008010* | 10 | -6 | 3/8" | 17.6 | 0.69 | 21.0 | 0.83 | 450 | 6,520 | 2,000 | 29,000 | 125 | 4.92 | 740 | 0.50 | MF+M00920-06 | – |
| H10008012* | 12 | -8 | 1/2" | 20.3 | 0.80 | 24.2 | 0.95 | 420 | 6,090 | 1,750 | 25,380 | 175 | 6.89 | 880 | 0.59 | MF+M00910-08 | – |
| H10008016* | 16 | -10 | 5/8" | 23.7 | 0.93 | 27.6 | 1.09 | 380 | 5,510 | 1,600 | 23,200 | 200 | 7.87 | 1,080 | 0.73 | MF+M00910-10 | – |
| H10008019* | 19 | -12 | 3/4" | 28.2 | 1.11 | 31.7 | 1.25 | 380 | 5,510 | 1,600 | 23,200 | 240 | 9.45 | 1,450 | 0.97 | MF+M00930-12 | SP+M05400-12 |
| H10008025* | 25 | -16 | 1" | 35.0 | 1.38 | 39.0 | 1.54 | 320 | 4,640 | 1,400 | 20,300 | 340 | 13.39 | 1,880 | 1.26 | MF+M00930-16 | SP+M05400-16 |
| H10008032* | 31 | -20 | 1.1/4" | 46.1 | 1.81 | 49.7 | 1.96 | 210 | 3,040 | 1,250 | 18,120 | 460 | 18.11 | 2,990 | 2.01 | MF+M00920-20 | SP+M05500-20 |
| H10008038* | 38 | -24 | 1.1/2" | 52.4 | 2.06 | 56.1 | 2.21 | 185 | 2,680 | 1,000 | 14,500 | 560 | 22.05 | 3,500 | 2.35 | MF+M00910-24 | SP+M05500-24 |
| H10008051* | 51 | -32 | 2" | 65.4 | 2.57 | 69.0 | 2.72 | 175 | 2,530 | 1,000 | 14,500 | 660 | 25.98 | 5,010 | 3.37 | MF+M00910-32 | SP+M05400-32 |
KEY FEATURES
• Validated for high fatigue resistance
• Superior abrasion resistance
• High ozone and weather resistance
• Flame resistance to a wide range of specs.
• Antistatic and anti-toxic cover
• Upgraded temperature resistance
• BIO biological and mineral oils compatibility
APPLICATIONS & FLUIDS
• Hydraulics: very high pressure power lines in severe environmental conditions, specific installations with tough abrasion conditions, marine applications, underground and open pit mining
• Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
121 °C, 250 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Four high tensile steel spirals
COVER
STRONG – TYPE “SD”
Synthetic rubber with high abrasion, ozone, weather and heat resistance
APPLICABLE SPECS
Exceeds EN 856 4SP; ISO 3862 4SP; DN 16 & 19: thin cover style, exceeds EN 856 4SP and ISO 3862 4SP
TYPE APPROVALS
ABS; DNV-GL; DNV-GL (MED); BV; FRAS; CU-TR; MA; MSHA; RINA; B; LR; NK; DB (EN 45545-2); CCS; KRS
