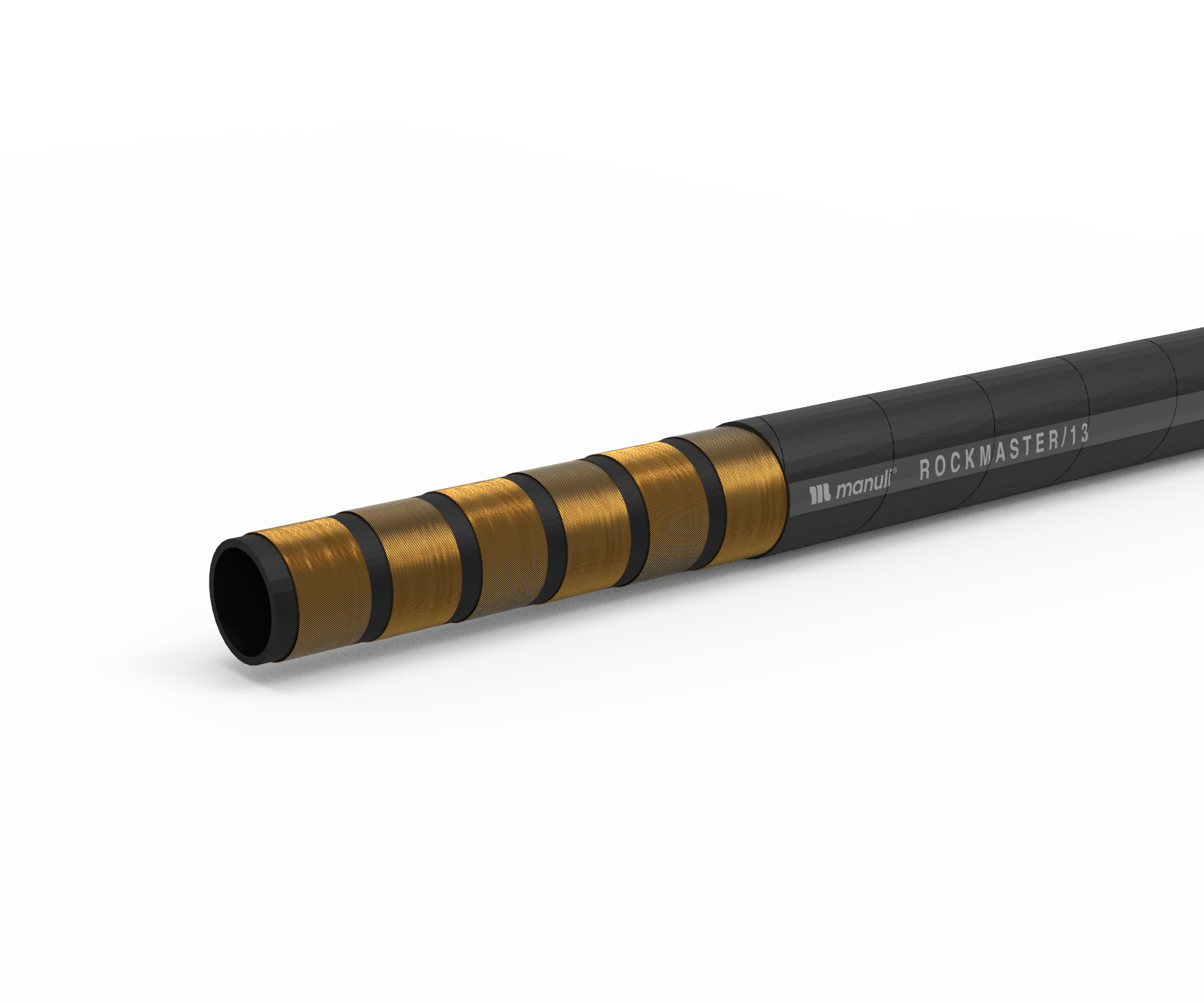

ROCKMASTER/13

ABRASION, WEATHER AND HEAT RESISTANCE

KEY FEATURES

• Validated for high fatigue resistance
• Superior abrasion resistance
• High ozone and weather resistance
• Flame resistance to a wide range of specs.
• Antistatic and anti-toxic cover
• Upgraded temperature resistance
• BIO biological and mineral oils compatibility

APPLICATIONS & FLUIDS

Hydraulics: heavy duty power lines, hydrostatic transmissions, severe environmental conditions, specific installations with tough abrasion conditions, marine applications, underground and open pit mining
Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water

CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
121 °C, 250 °F

TUBE
Oil resistant synthetic rubber

REINFORCEMENT
Four high tensile steel spirals (DN 6-25). Six high tensile steel spirals (DN 31-51)

COVER
STRONG – TYPE “SD”
Synthetic rubber with high abrasion, ozone, weather and heat resistance

APPLICABLE SPECS
Exceeds EN 856 R13; SAE 100 R13; ISO 3862 R13

TYPE APPOVALS
ABS; BV; DNV-GL; FRAS; LR; CU-TR; MA; MSHA; RINA; B; CCS; DNV-GL(MED)

TECHNICAL DATA

PART REF.	HOSE SIZE			R.O.D		O.D		MAX. W.P		BURST		MIN. BEND		WEIGHT		FITTINGS
	DN	dash	inch	mm	inch	mm	inch	bar	psi	bar	psi	mm	inch	g/m	lb/ft	Std 1	Std 2
H10035A06*	6	-4	1/4″	14.6	0.57	17.6	0.69	690	10,000	3,250	47,130	120	4.72	660	0.44	–	–
H10035A10*	10	-6	3/8″	17.4	0.69	20.4	0.80	690	10,000	2,900	42,060	150	5.91	830	0.56	–	–
H10035A12*	12	-8	1/2″	21.5	0.85	24.5	0.96	620	8,990	2,500	36,250	200	7.87	1,140	0.77	–	–
H10035019*	19	-12	3/4″	29.0	1.14	31.8	1.25	350	5,070	1,950	28,280	240	9.45	1,630	1.10	IP+M01500-12	SP+M05400-12
H10035025*	25	-16	1″	36.0	1.42	39.2	1.54	350	5,070	1,650	23,930	300	11.81	2,190	1.47	IP+M01500-16	SP+M05400-16
H10035032*	31	-20	1.1/4″	47.0	1.85	50.0	1.97	350	5,070	1,500	21,750	420	16.54	3,600	2.42	IP+M01600-20	SP+M05500-20
H10035040*	38	-24	1.1/2″	54.6	2.15	57.5	2.26	350	5,070	1,600	23,200	500	19.69	4,700	3.16	IP+M01600-24	SP+M05500-24
H10035051*	51	-32	2″	68.4	2.69	72.0	2.83	350	5,070	1,500	21,750	630	24.80	6,800	4.57	IP+M01800-32	SP+M05500-32

DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
