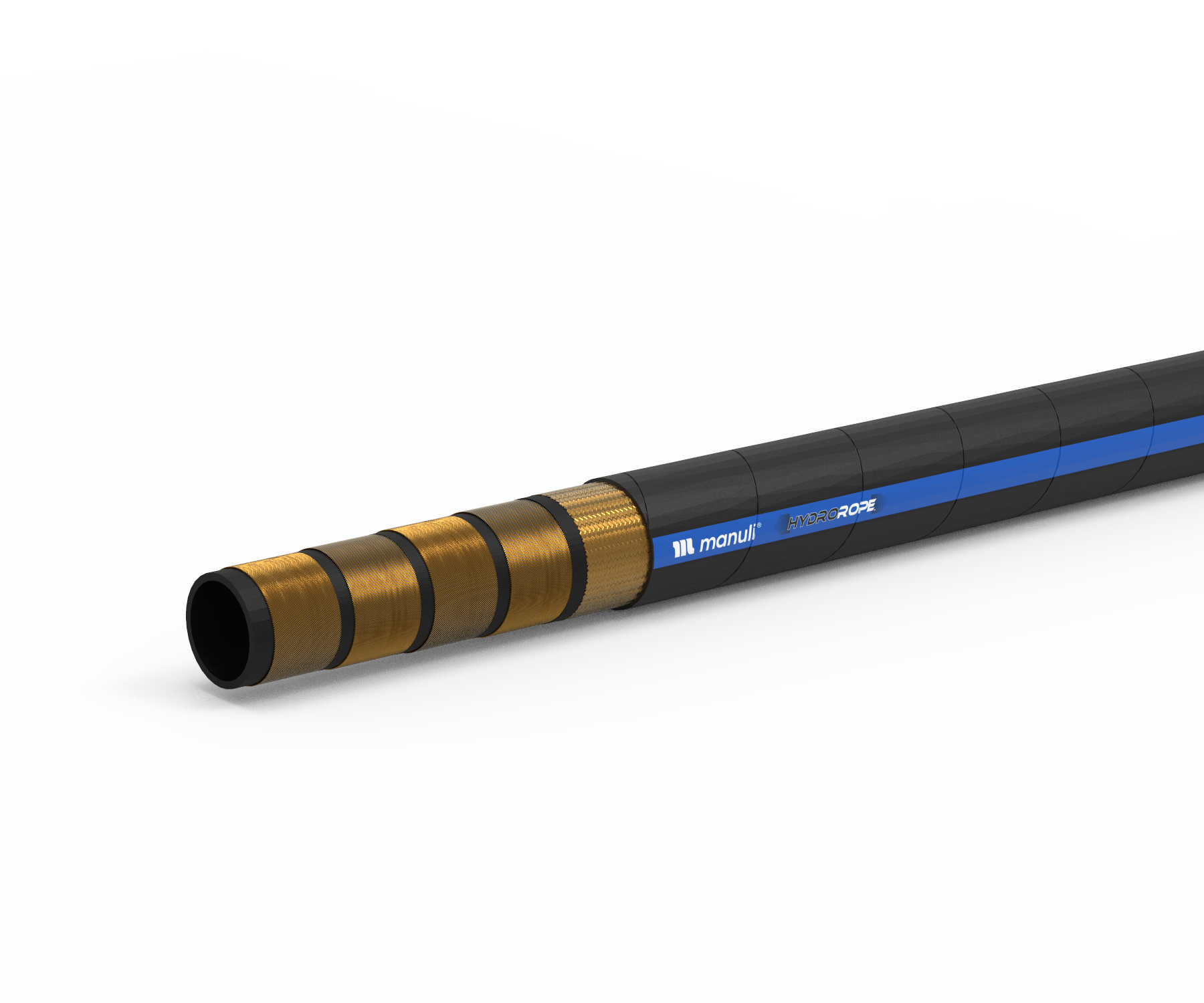

HYDROROPE
OUTSTANDING TENSILE STRENGTH
KEY FEATURES
• Designed to resist pulling force
• High pressure resistance
• Superior abrasion resistance
• High ozone and weather resistance
• Flame resistance to a wide range of specs
• Anti-static and anti-toxic cover
APPLICATIONS & FLUIDS
- Heavy duty power lines in severe environmental conditions
- Specific installations with tough abrasion conditions
- Off-shore applications, underground and open-pit mining, special machines where hose high pulling resistance is required (grabs, etc.)
- Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-46 °C, -50 °F
121 °C, 250 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Four (DN 25, 31, DN 38 Compact) and six (DN 38, DN 76) high tensile steel spirals + One high tensile steel wire braid
COVER
STRONG – TYPE “SC”
Synthetic rubber with high abrasion, ozone, weather and heat resistance and an extended operational temperature range
APPLICABLE SPECS
Manuli® Design
TYPE APPOVALS
MSHA; CU-TR
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H10136025* | 25 | -16 | 1 | 38.2 | 1.50 | 41.4 | 1.63 | 420 | 6,090 | 1,680 | 24,360 | 400 | 15.51 | 2,910 | 1.95 | IP+M01850-16 | – |
| H10136031* | 31 | -20 | 1.1/4″ | 46.9 | 1.85 | 50.1 | 1.97 | 420 | 6,090 | 1,680 | 24,360 | 450 | 17.72 | 3,749 | 2.52 | IP+M01600-20 | – |
| H10136A38*† | 38 | -24 | 1.1/2″ | 53.2 | 2.09 | 56.5 | 2.22 | 350 | 5,076 | 1,400 | 20,305 | 500 | 19.65 | 4,256 | 2.86 | IP+M01600-24 | – |
| H10136038* | 38 | -24 | 1.1/2″ | 54.7 | 2.15 | 57.3 | 2.26 | 420 | 6,090 | 1,680 | 24,360 | 600 | 23.62 | 4,650 | 3.12 | IS+M02700-24 | – |
| H10136051* | 51 | -32 | 2″ | 69.2 | 2.72 | 72.4 | 2.85 | 420 | 6,090 | 1,680 | 24,360 | 800 | 31.50 | 6,590 | 4.42 | IS+M02700-32 | – |
| H10136063* | 63 | -40 | 2.1/2″ | 84.1 | 3.31 | 87.3 | 3.44 | 380 | 5,511 | 1,520 | 22,045 | 900 | 35.43 | 9,405 | 6.31 | IP+M01900-40 | – |
| H10136076* | 76 | -48 | 3″ | 97.1 | 3.82 | 100.2 | 3.94 | 350 | 5,076 | 1,400 | 20,305 | 1000 | 39.37 | 11,106 | 7.46 | IS+M02700-48 | – |
| † Compact hose | |||||||||||||||||
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
