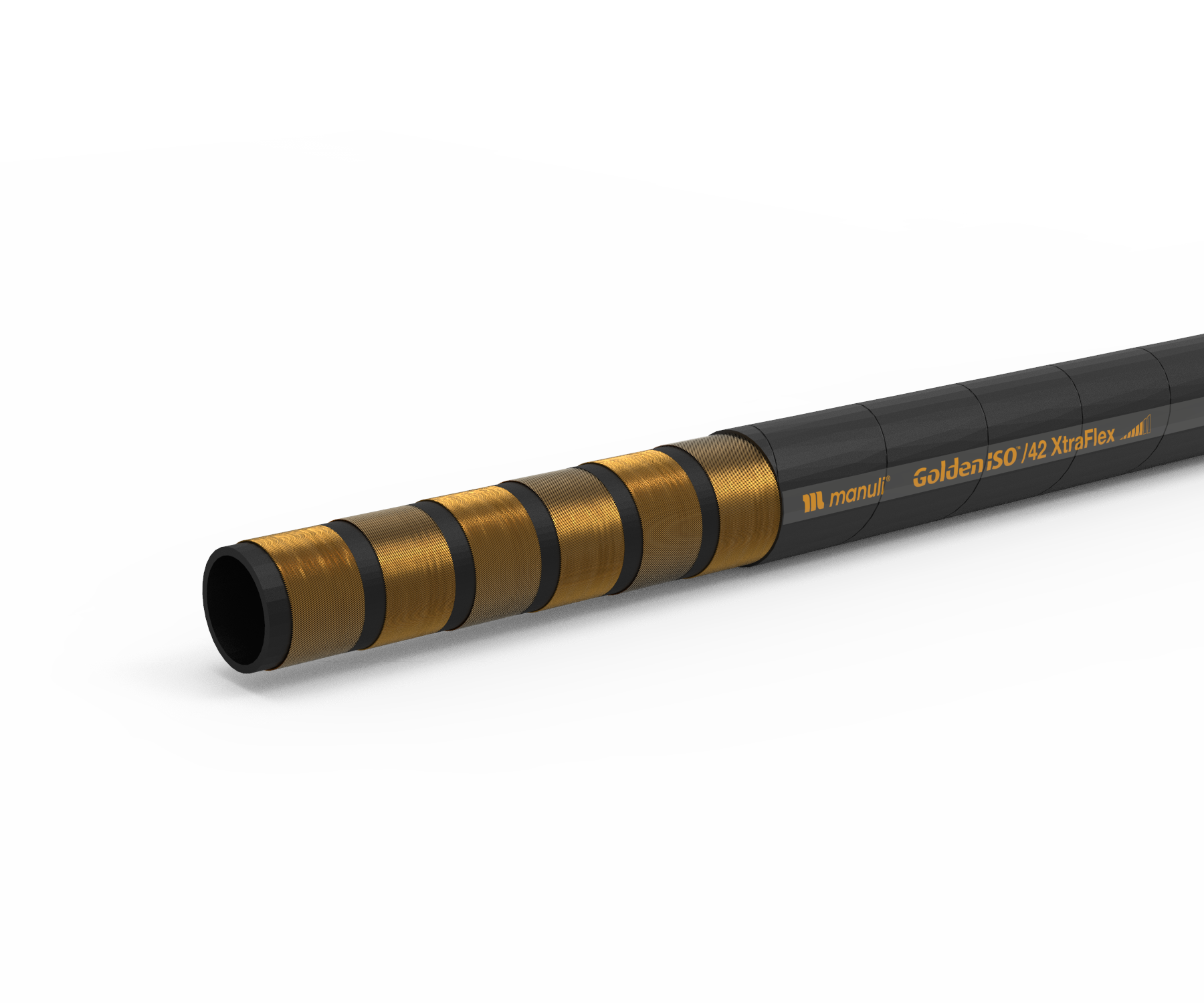

GOLDENISO/42 XTRAFLEX
COMPACTNESS AND FLEXIBILITY
KEY FEATURES
• Bend radius which exceeds the standard requirements by - 30% to -50%
• Good flexibility in the whole temperature range
• Easy mounting in any installation
• High impulse resistance according to ISO 18752 requirements
• Weight saving of 20% vs traditional R15 hose construction
• No-skive fitting solution is available
• Isobaric pressure rating for easy selection and product management
APPLICATIONS & FLUIDS
- High pressure power lines for general hydraulics
- Heavy duty power lines
- Applications with installation constraints (short assemblies, compact spaces, low bend radii, etc.)
- Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-46 °C, -50 °F
121 °C, 250 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Two high tensile steel wire braids (DN 6). Four high tensile steel spirals (DN 10-31). Six high tensile steel spirals (DN 38-51).
COVER
STRONG – TYPE “SC”
Synthetic rubber with high abrasion, ozone, weather and heat resistance and an extended operational temperature range
APPLICABLE SPECS
ISO 18752-C (Grade C “Plus” approved 1 Mil impulse cycles with Interlock Plus fittings), meets and exceed ISO 3862-R15 performance
TYPE APPOVALS
CU-TR; MSHA; FRAS; B; ABS; BV; LR; RINA; DNV-GL(MED); DNV-GL; MA
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H10097006* | 6 | -4 | 1/48″ | 11.3 | 0.44 | 13.1 | 0.52 | 420 | 6,090 | 1,680 | 24,360 | 45 | 1.77 | 284 | 0.19 | MF+M00120-04 | – |
| H10097010* | 10 | -6 | 3/8″ | 17.6 | 0.69 | 20.0 | 0.79 | 420 | 6,090 | 1,680 | 24,360 | 100 | 3.94 | 688 | 0.46 | MF+M00920-06 | – |
| H10097012* | 12 | -8 | 1/2″ | 20.3 | 0.80 | 22.7 | 0.89 | 420 | 6,090 | 1,680 | 24,360 | 120 | 4.72 | 807 | 0.54 | MF+M00910-08 | – |
| H10097016* | 16 | -10 | 5/8″ | 23.9 | 0.94 | 26.4 | 1.04 | 420 | 6,090 | 1,680 | 24,360 | 140 | 5.51 | 989 | 0.66 | IP+M01500-10 | SP+M05400-10 |
| H10097019* | 19 | -12 | 3/4″ | 27.7 | 1.09 | 30.2 | 1.19 | 420 | 6,090 | 1,680 | 24,360 | 150 | 5.91 | 1,285 | 0.86 | IP+M01500-12 | SP+M05400-12 |
| H10097025* | 25 | -16 | 1″ | 34.8 | 1.37 | 37.3 | 1.47 | 420 | 6,090 | 1,680 | 24,360 | 210 | 8.27 | 2,007 | 1.35 | IP+M01500-16 | SP+M05400-16 |
| H10097031* | 31 | -20 | 1.1/4″ | 46.3 | 1.82 | 49.5 | 1.95 | 420 | 6,090 | 1,680 | 24,360 | 260 | 10.24 | 3,663 | 2.46 | IP+M01600-20 | SP+M05500-20 |
| H10097038* | 38 | -24 | 1.1/2″ | 53.2 | 2.09 | 56.4 | 2.22 | 420 | 6,090 | 1,680 | 24,360 | 310 | 12.20 | 4,450 | 2.99 | IP+M01600-24 | SPGX+M05500-24GX |
| H10097051* | 51 | -32 | 2” | 68.9 | 2.71 | 72.4 | 2.85 | 420 | 6,090 | 1,680 | 24,360 | 500 | 19.69 | 7,310 | 4.91 | IS+M02700-32 | SPGX+M05500-32GX |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
