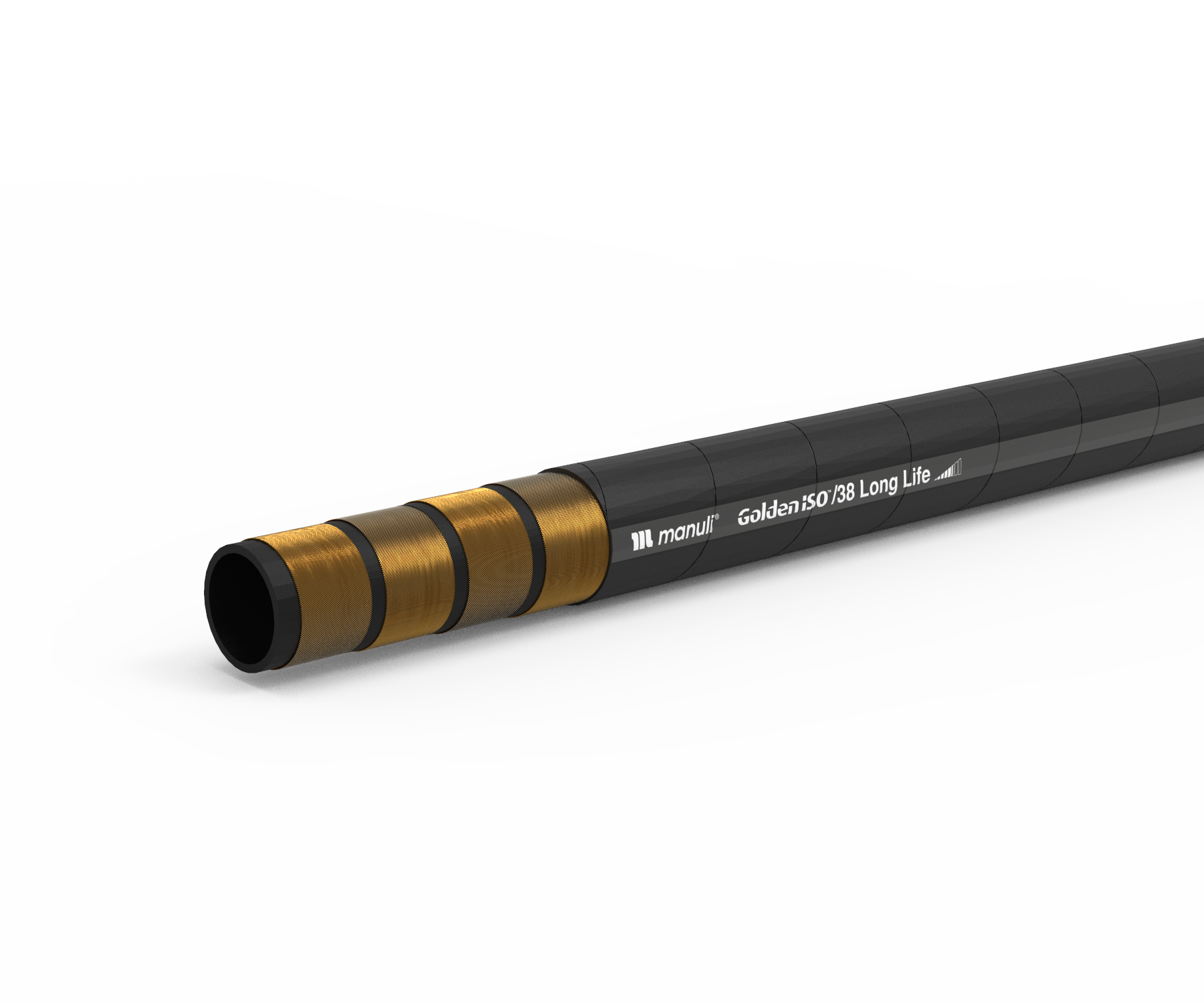

GOLDENISO/38 LONGLIFE
HIGH FATIGUE RESISTANCE
KEY FEATURES
• Designed for original equipment
• Long-term mission profile in severe applications
• Over standard pressure rating
• High impulse resistance exceeding the ISO 18752 requirements
• Superior abrasion resistance
• High ozone and weather resistance
• Flame retardant and antistatic properties of the cover
• Wide compatibility with hydraulic fluids, mineral and biodegradable oils
• Low bend radius, better than the standard requirements
• Interlock-Plus easy mounting system for a very high-level robustness
• Isobaric pressure rating for easy selection and product management
APPLICATIONS & FLUIDS
- Heavy duty pressure lines, hydrostatic transmissions, heavy duty earth moving equipment, hydraulic presses, drilling applications, injection moulding machines, specific installations with severe abrasion conditions and/or harsh environmental conditions, marine applications, underground and open pit mining
- Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-46 °C, -50 °F
121 °C, 250 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Two high tensile steel wire braids (DN 6 – 12), four high tensile steel wire spirals (DN 19 & 25), six high tensile steel wire spirals (DN 31)
COVER
STRONG – TYPE “SC”
Synthetic rubber with high abrasion, ozone, weather and heat resistance and an extended operational temperature range
APPLICABLE SPECS
Manuli® Design: DN 6 to 12 exceeds ISO 18752-C extension; DN 19 to 31 exceeds SAE J517 Type 100R13; ISO 3862 R13; ISO 18752-C-D extension
TYPE APPOVALS
CU-TR; MSHA; FRAS
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H10098006* | 6 | -4 | 1/4” | 11.3 | 0.44 | 13.1 | 0.52 | 380 | 5,510 | 1,680 | 24,360 | 45 | 1.77 | 284 | 0.19 | MF+M00120-04 | – |
| H10098008* | 8 | -5 | 5/16” | 12.9 | 0.51 | 14.7 | 0.58 | 380 | 5,510 | 1,680 | 24,360 | 55 | 2.17 | 318 | 0.21 | MF+M00120-05 | – |
| H10098010* | 10 | -6 | 3/8” | 15.5 | 0.61 | 17.1 | 0.67 | 380 | 5,510 | 1,680 | 24,360 | 65 | 2.56 | 440 | 0.30 | MF+M00120-06 | – |
| H10098012* | 12 | -8 | 1/2” | 18.6 | 0.73 | 20.6 | 0.81 | 380 | 5,510 | 1,680 | 24,360 | 80 | 3.15 | 573 | 0.39 | MF+M00120-08 | – |
| H10098019* | 19 | -12 | 3/4″ | 27.7 | 1.09 | 32.0 | 1.26 | 380 | 5,510 | 1,680 | 24,360 | 170 | 6.69 | 1,410 | 0.95 | IP+M01500-12 | – |
| H10098025* | 25 | -16 | 1″ | 34.8 | 1.37 | 38.1 | 1.50 | 380 | 5,510 | 1,680 | 24,360 | 220 | 8.66 | 1,964 | 1.32 | IP+M01500-16 | – |
| H10098031* | 31 | -20 | 1.1/4″ | 46.3 | 1.82 | 49.5 | 1.95 | 380 | 5,510 | 1,680 | 24,360 | 267 | 10.51 | 3,663 | 2.46 | IP+M01600-20 | – |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
