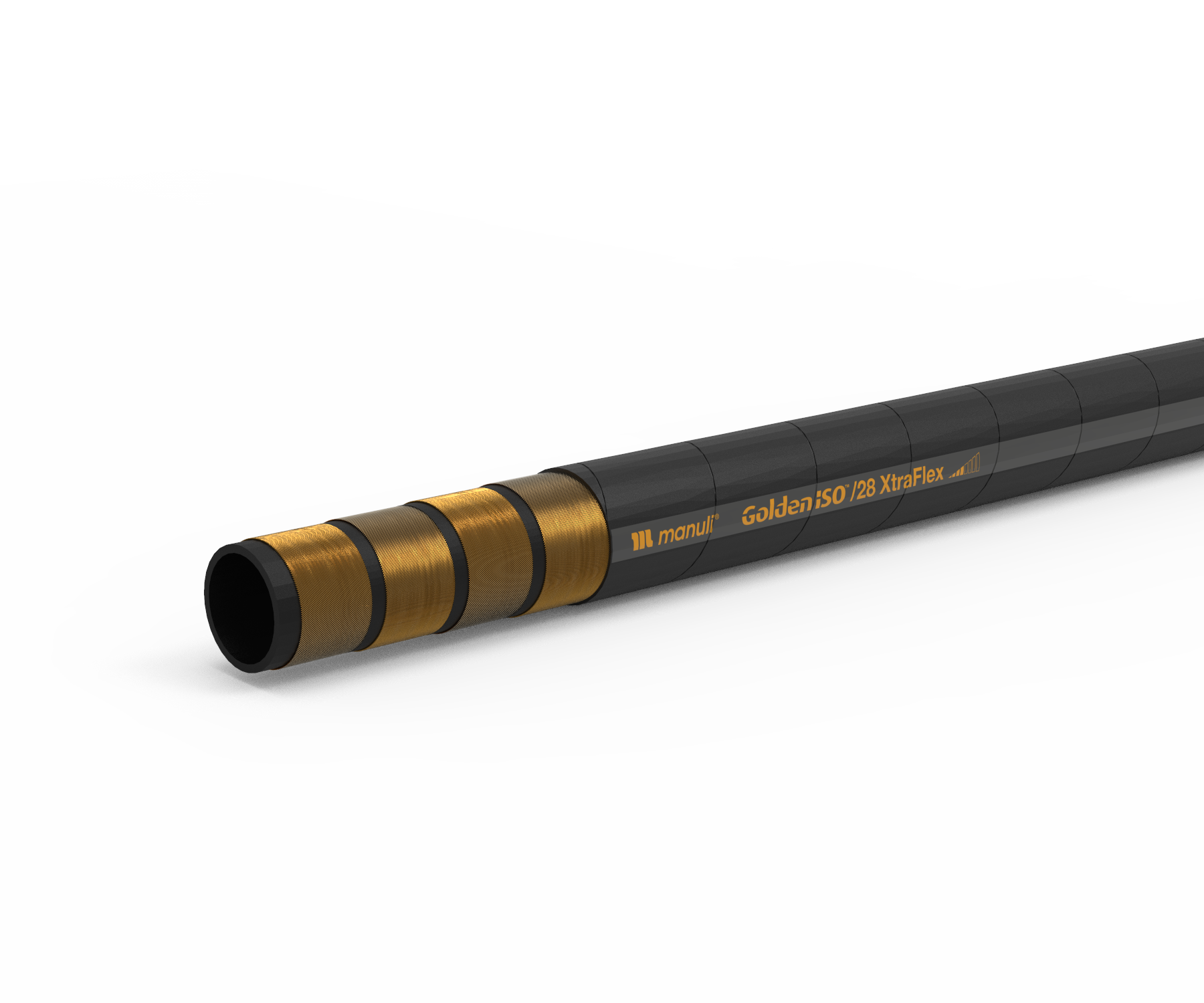

GOLDENISO/28 XTRAFLEX
COMPACTNESS AND FLEXIBILITY
KEY FEATURES
• Bend radius which exceeds the standard requirements by - 30% to -50%
• Good flexibility in the whole temperature range
• Easy mounting in any installation
• High impulse resistance according to ISO 18752 Grade D (with skive / double-skive fittings)
• Weight saving of 20% vs traditional R12 hose construction
• No-skive fitting solution is available
• Isobaric pressure rating for easy selection and product management
APPLICATIONS & FLUIDS
- High pressure power lines for general hydraulics
- Applications with installation constraints (short assemblies, compact spaces, low bend radii, etc.)
- Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-46 °C, -50 °F
121 °C, 250 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
4 high tensile steel spirals
COVER
STRONG – TYPE “SC”
Synthetic rubber with high abrasion, ozone, weather and heat resistance and an extended operational temperature range
APPLICABLE SPECS
ISO 18752 Type C/D; JIS K6349-3
TYPE APPOVALS
CU-TR; MSHA; FRAS; CCS; ABS; BV; LR; DNV-GL(MED); NK; B
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H10095010* | 10 | -6 | 3/8″ | 16.7 | 0.66 | 18.9 | 0.74 | 280 | 4,060 | 1,120 | 16,240 | 65 | 2.56 | 520 | 0.35 | MF+M00920-06 | OPK-06 |
| H10095012* | 12 | -8 | 1/2″ | 19.6 | 0.77 | 21.8 | 0.86 | 280 | 4,060 | 1,120 | 16,240 | 90 | 3.54 | 650 | 0.44 | MF+M00910-08 | OPK-08 |
| H10095016* | 16 | -10 | 5/8″ | 23.5 | 0.93 | 25.7 | 1.01 | 280 | 4,060 | 1,120 | 16,240 | 100 | 3.94 | 934 | 0.63 | MF+M00910-10 | OPK-10 |
| H10095019* | 19 | -12 | 3/4″ | 26.9 | 1.06 | 29.3 | 1.15 | 280 | 4,060 | 1,120 | 16,240 | 120 | 4.72 | 1,040 | 0.70 | MF+M00930-12 | OPK-12 |
| H10095025* | 25 | -16 | 1″ | 34.1 | 1.34 | 36.5 | 1.44 | 280 | 4,060 | 1,120 | 16,240 | 150 | 5.91 | 1,530 | 1.03 | MF+M00930-16 | OPK-16 |
| H10095031* | 31 | -20 | 1.1/4″ | 41.7 | 1.64 | 44.5 | 1.75 | 280 | 4,060 | 1,120 | 16,240 | 210 | 8.27 | 2,160 | 1.45 | MF+M00920-20 | OPK-20 |
| H10095038* | 38 | -24 | 1.1/2″ | 48.9 | 1.93 | 52.1 | 2.05 | 280 | 4,060 | 1,120 | 16,240 | 280 | 11.02 | 2,994 | 2.01 | IP+M01500-24 | SP+M05400-24 |
| H10095051* | 51 | -32 | 2″ | 63.9 | 2.52 | 67.5 | 2.66 | 280 | 4,060 | 1,120 | 16,240 | 350 | 13.78 | 4,633 | 3.11 | IP+M01500-32 | SP+M05400-32 |
