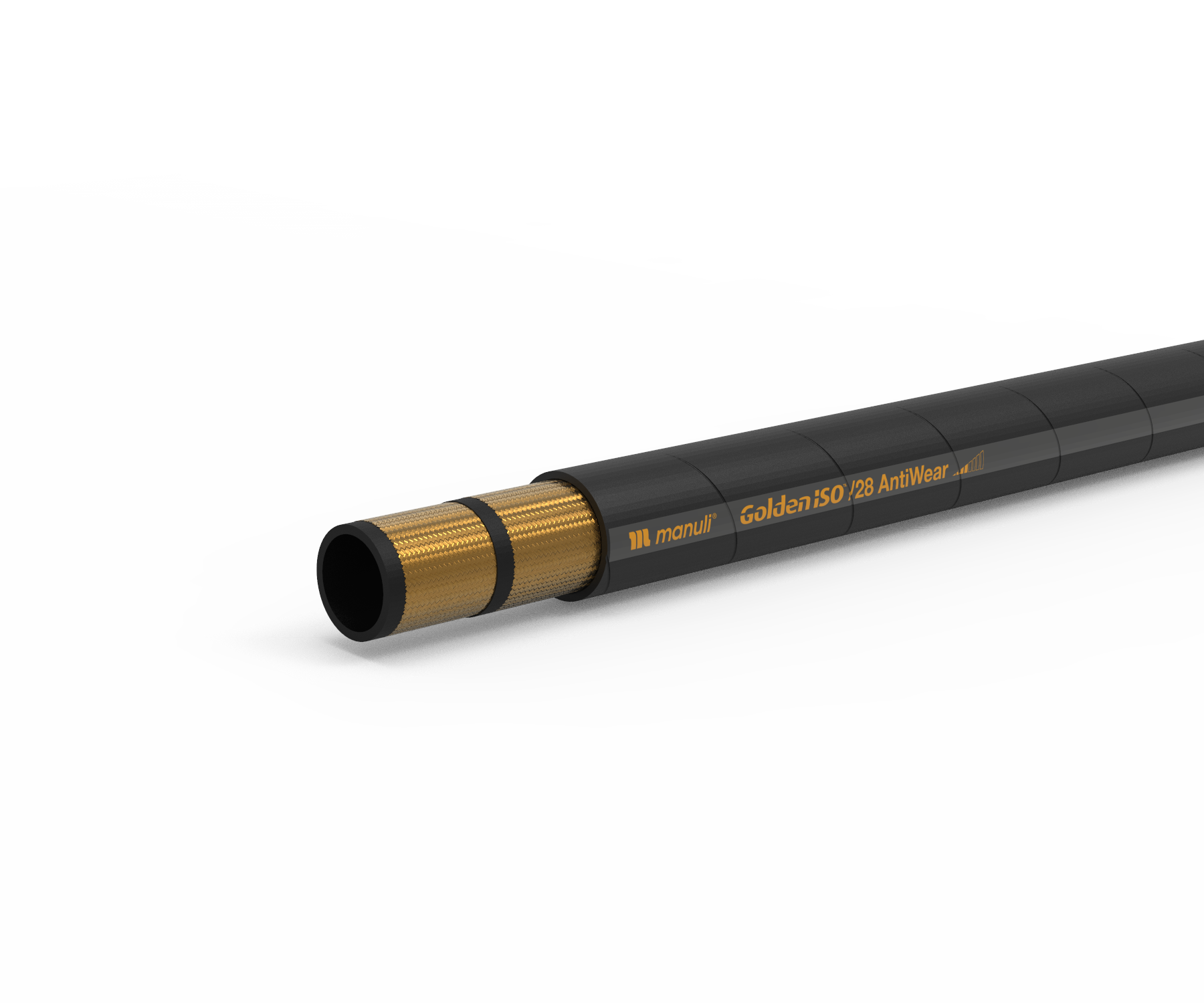

TECHNICAL DATA | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
H01142006* | 6 | – 4 | 1/4" | 11.6 | 0.45 | 13.2 | 0.51 | 280 | 4,060 | 1,120 | 16,244 | 50.0 | 1.96 | 260 | 0.17 | MF + M03300-04 | OPF-04 |
H01142008* | 8 | – 5 | 5/16" | 12.9 | 0.5 | 14.5 | 0.57 | 280 | 4,060 | 1,120 | 16,244 | 55.0 | 2.16 | 280 | 0.19 | MF + M03300-05 | OPF-05 |
H01142010* | 10 | – 6 | 3/8" | 15.4 | 0.6 | 17.0 | 0.66 | 280 | 4,060 | 1,120 | 16,244 | 63.0 | 2.48 | 380 | 0.26 | MF + M03300-06 | OPF-06 |
H01142012* | 12 | – 8 | 1/2" | 18.5 | 0.72 | 20.3 | 0.79 | 280 | 4,060 | 1,120 | 16,244 | 80.0 | 3.14 | 495 | 0.33 | MF + M03300-08 | OPF-08 |
H01142016* | 16 | – 10 | 5/8" | 22.7 | 0.89 | 24.7 | 0.97 | 280 | 4,060 | 1,120 | 16,244 | 90.0 | 3.54 | 730 | 0.49 | MF + M03400-10 | OPF-10 |
H01142019* | 19 | – 12 | 3/4" | 27.1 | 1.06 | 29.3 | 1.15 | 280 | 4,060 | 1,120 | 16,244 | 120.0 | 4.72 | 1,060 | 0.71 | MF + M03400-12 | OPK-12 |
H01142025* | 25 | – 16 | 1" | 35.4 | 1.39 | 37.8 | 1.48 | 280 | 4,060 | 1,120 | 16,244 | 150.0 | 5.9 | 1,550 | 1.04 | MF + M03500-16 | OPK-16 |
• Extreme abrasion resistance
• Very low bend radius to suit restricted space installations
• High robust and compact hose structure compared to rated pressure
• Approved at 200,000 impulse cycles, at T=100°C (ISO 18752 grade A)
• High environmental agents resistance
• Vacuum resistance accordingly to SAE 100R4 requirements
• Medium and high pressure hydraulic lines with installation constraints, pilot lines, return, drain and suction lines
• Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
-40 °C, -40 °F
100 °C, 212 °F
Synthetic rubber
Two wire braids
S.H.A.R.C.
Synthetic rubber with very high abrasion, ozone and weather resistance
ISO 18752 grade A; SAE J517 Type 100 R19
CU-TR; MSHA
