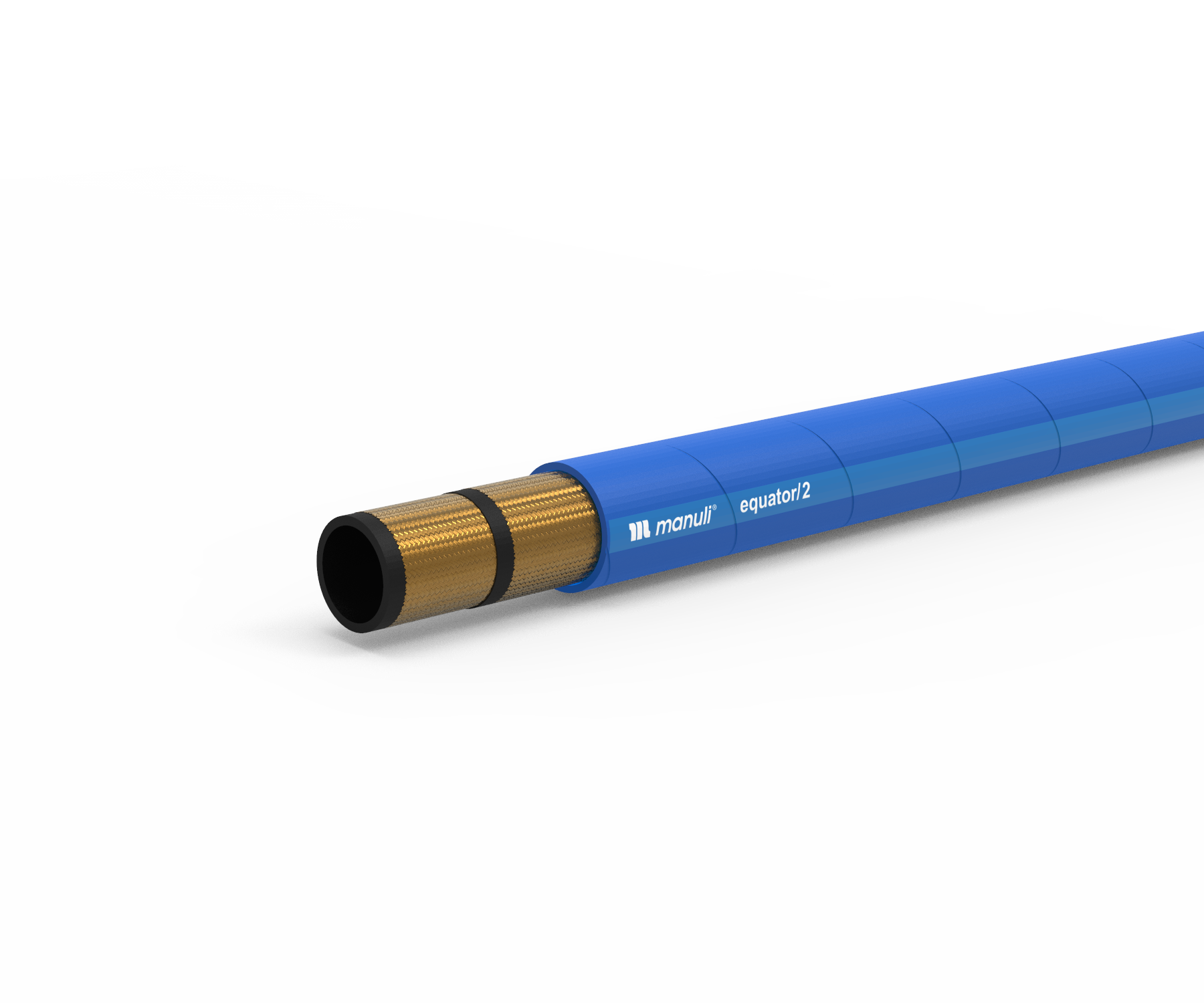

EQUATOR/2 (BLUE)
EXTREME HIGH TEMPERATURE - BLUE VERSION
KEY FEATURES
• Wide range temperature resistance
• EN/DIN and new SAE pressure rating
• Outstanding ozone resistance
• Superior weather and UV resistance
• High aging resistance
- Hydraulics: medium-high pressure lines in extreme temperature conditions (foundries, compressors, hydraulics within engine compartments, etc.)
- Mineral oils, glycols and polyglycols, transmission fluids, air with oil vapours, mineral oils in aqueous emulsion (up to 212°F/100°C)
CONTINUOUS SERVICE TEMPERATURE RANGE
-55 °C, -67 °F
135 °C, 275 °F
MAX OPERATING TEMPERATURE
150 °C, 300 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Two high tensile steel braids
COVER
STANDARD – TYPE “XT”
Synthetic rubber with high ozone, weather and heat resistance
APPLICABLE SPECS
Exceeds EN 853 2SN; SAE 100 R2AT; ISO 1436 2SN/R2AT
TYPE APPOVALS
ABS; BV; DNV-GL(MED); DNV-GL; CU-TR; LR; MSHA; DIN 5510-2
REMARKS
- Compressed air applications require cover pin-pricking and additional safety devices. High pressure compressed air applications must be carefully analysed to verify the suitability of the hose, contact Manuli Hydraulics Help Desk for technical guidelines.
- Equator hose is not suitable for high temperature water applications
- Equator hoses are not designed and not approved for “air brake” applications on railway and/or mobile equipment
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H01061006* | 6 | -4 | 1/4″ | 12.7 | 0.50 | 14.9 | 0.59 | 400 | 5,800 | 1,725 | 25,010 | 100 | 3.94 | 395 | 0.27 | MF+M00910-04 | OPF-04 |
| H01061008* | 8 | -5 | 5/16″ | 14.3 | 0.56 | 16.5 | 0.65 | 350 | 5,070 | 1,480 | 21,460 | 114 | 4.49 | 435 | 0.29 | MF+M00910-05 | – |
| H01061010* | 10 | -6 | 3/8″ | 16.7 | 0.66 | 19.0 | 0.75 | 330 | 4,780 | 1,400 | 20,300 | 127 | 5.00 | 530 | 0.36 | MF+M00920-06 | – |
| H01061012* | 12 | -8 | 1/2″ | 19.8 | 0.78 | 22.0 | 0.87 | 275 | 3,980 | 1,200 | 17,400 | 178 | 7.01 | 640 | 0.43 | MF+M00910-08 | – |
| H01061016* | 16 | -10 | 5/8″ | 23.0 | 0.91 | 25.2 | 0.99 | 250 | 3,620 | 1,020 | 14,790 | 200 | 7.87 | 760 | 0.51 | MF+M00910-10 | – |
| H01061019* | 19 | -12 | 3/4″ | 27.0 | 1.06 | 29.0 | 1.14 | 215 | 3,110 | 900 | 13,050 | 240 | 9.45 | 940 | 0.63 | MF+M00930-12 | – |
| H01061025* | 25 | -16 | 1″ | 34.8 | 1.37 | 37.0 | 1.46 | 175 | 2,530 | 700 | 10,150 | 300 | 11.81 | 1,350 | 0.91 | MF+M00930-16 | – |
| H01061032* | 31 | -20 | 1.1/4″ | 44.3 | 1.74 | 47.0 | 1.85 | 150 | 2,170 | 600 | 8,700 | 420 | 16.54 | 2,010 | 1.35 | MF+M00920-20 | – |
| H01061040* | 38 | -24 | 1.1/2″ | 50.7 | 2.00 | 53.4 | 2.10 | 100 | 1,450 | 410 | 5,940 | 500 | 19.69 | 2,250 | 1.51 | MF+M00910-24 | OPK-24 |
| H01061051* | 51 | -32 | 2″ | 63.5 | 2.50 | 66.2 | 2.61 | 90 | 1,300 | 370 | 5,360 | 630 | 24.80 | 3,080 | 2.07 | MF+M00910-32 | OPK-32 |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
