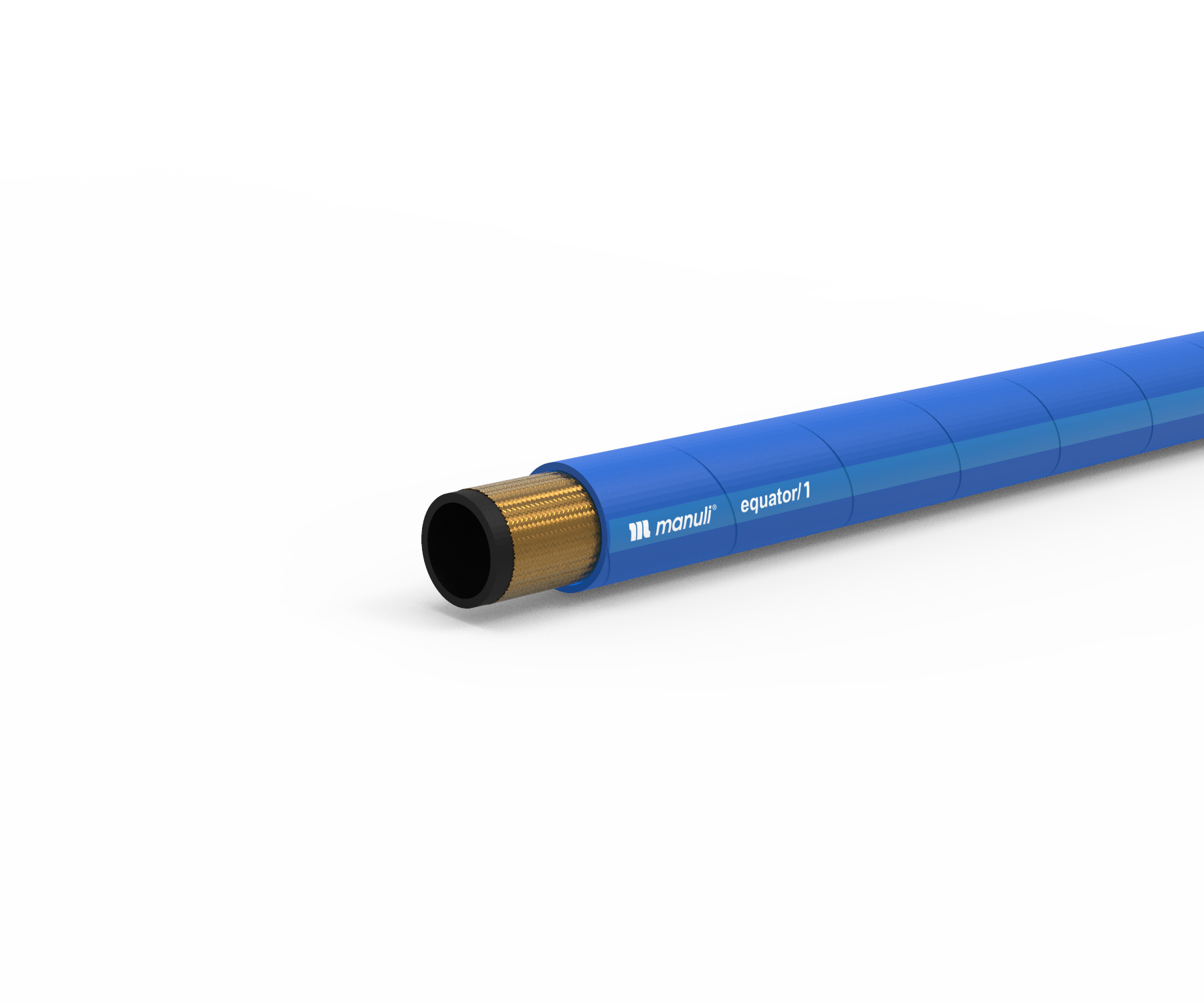

EQUATOR/1 (BLUE)
EXTREME HIGH TEMPERATURE - BLUE VERSION
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H01059006* | 6 | -4 | 1/4" | 11.0 | 0.43 | 13.4 | 0.53 | 225 | 3,260 | 1,000 | 14,500 | 100 | 3.94 | 240 | 0.16 | MF+M00120-04 | OPF-04 |
| H01059008* | 8 | -5 | 5/16" | 12.6 | 0.50 | 15.0 | 0.59 | 215 | 3,110 | 900 | 13,050 | 114 | 4.49 | 285 | 0.19 | MF+M00120-05 | – |
| H01059010* | 10 | -6 | 3/8" | 15.0 | 0.59 | 17.3 | 0.68 | 180 | 2,610 | 800 | 11,600 | 127 | 5.00 | 340 | 0.23 | MF+M00120-06 | – |
| H01059012* | 12 | -8 | 1/2" | 18.1 | 0.71 | 20.5 | 0.81 | 160 | 2,320 | 680 | 9,860 | 178 | 7.01 | 435 | 0.29 | MF+M00120-08 | – |
| H01059016* | 16 | -10 | 5/8" | 21.3 | 0.84 | 23.5 | 0.93 | 130 | 1,880 | 600 | 8,700 | 200 | 7.87 | 510 | 0.34 | MF+M00120-10 | – |
| H01059019* | 19 | -12 | 3/4" | 25.2 | 0.99 | 27.7 | 1.09 | 105 | 1,520 | 500 | 7,250 | 240 | 9.45 | 640 | 0.43 | MF+M00120-12 | – |
| H01059025* | 25 | -16 | 1" | 33.1 | 1.30 | 35.8 | 1.41 | 88 | 1,270 | 360 | 5,220 | 300 | 11.81 | 980 | 0.66 | MF+M00130-16 | – |
| H01059032* | 31 | -20 | 1.1/4" | 40.6 | 1.60 | 43.5 | 1.71 | 65 | 940 | 345 | 5,000 | 420 | 16.54 | 1,300 | 0.87 | MF+M00110-20 | OPK-20 |
| H01059038* | 38 | -24 | 1.1/2" | 46.9 | 1.85 | 50.0 | 1.97 | 50 | 720 | 290 | 4,200 | 500 | 19.69 | 1,540 | 1.03 | MF+M00110-24 | OPK-24 |
| H01059051* | 51 | -32 | 2" | 60.4 | 2.38 | 63.1 | 2.48 | 40 | 580 | 250 | 3,620 | 630 | 24.80 | 2,100 | 1.41 | MF+M00110-32 | OPK-32 |
| H01059063* | 63 | -40 | 2.1/2" | 72.0 | 2.83 | 74.6 | 2.94 | 35 | 500 | 140 | 2,030 | 600 | 23.62 | 2,400 | 1.61 | MF+M03400-40 | – |
KEY FEATURES
• Wide range temperature resistance
• EN/DIN and new SAE pressure rating
• Outstanding ozone resistance
• Superior weather and UV resistance
• High aging resistance
APPLICATIONS & FLUIDS
• Hydraulics: low-medium pressure lines in extreme temperature conditions (foundries, compressors, hydraulics within engine compartments, etc.)
• Mineral oils, glycols and polyglycols, transmission fluids, air with oil vapours, mineral oils in aqueous emulsion (up to 212°F/100°C)
CONTINUOUS SERVICE TEMPERATURE RANGE
-55 °C, -67 °F
135 °C, 275 °F
MAX. OPERATING TEMPERATURE
150 °C, 300 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
One high tensile steel braid
COVER
STANDARD – TYPE “XT”
Synthetic rubber with high ozone, weather and heat resistance
APPLICABLE SPECS
Exceeds EN 853 1SN; SAE 100 R1AT; ISO 1436 1SN/R1AT
TYPE APPROVALS
ABS; BV; DNV-GL(MED); DNV-GL; CU-TR; LR; MSHA
REMARKS
• Compressed air applications require cover pin-pricking and additional safety devices. High pressure compressed air applications must be carefully analysed to verify the suitability of the hose, contact Manuli Hydraulics Help Desk for technical guidelines.
• Equator hose is not suitable for high temperature water applications
• Equator hoses are not designed and not approved for “air brake” applications on railway and/or mobile equipment
