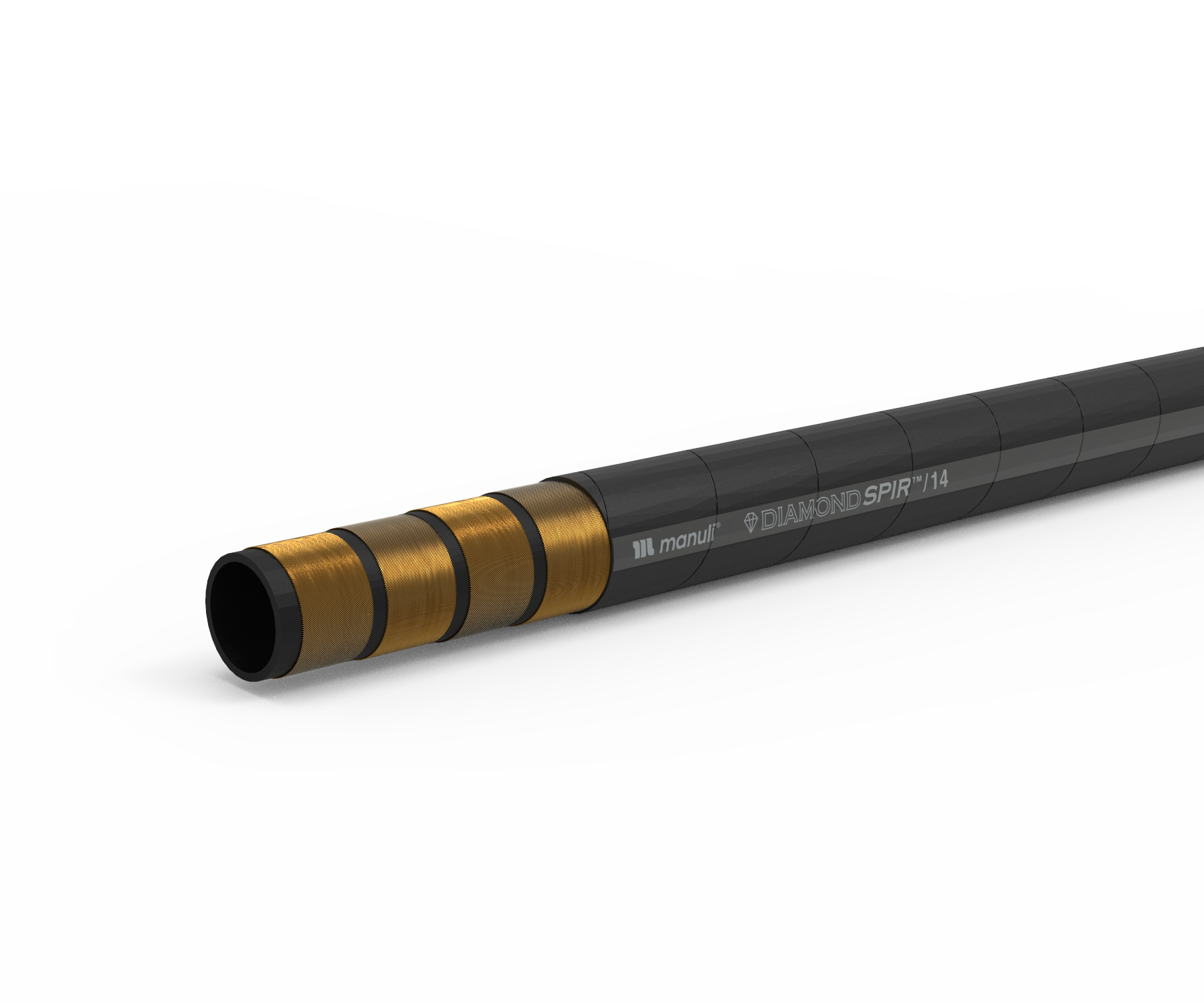

DIAMONDSPIR/14
HIGH FLOW RATES, OUTSTANDING ABRASION RESISTANCE
KEY FEATURES
• Extreme abrasion resistance
• High ozone and weather resistance
• Flame retardant and antistatic cover
• Superior pressure rating
• Structure robustness for tough handling
• Interlock robust fitting technology
APPLICATIONS & FLUIDS
- Medium pressure hydraulic lines with high flow rates, mine hydraulic return lines, large equipment hydraulics
- Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-46 °C, -50 °F
121 °C, 250 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Four high tensile steel spirals
COVER
STRONG – TYPE “SC”
Synthetic rubber with high abrasion, ozone, weather and heat resistance and an extended operational temperature range
APPLICABLE SPECS
Manuli® Design, ISO 18752-C Ext.
TYPE APPOVALS
CU-TR; MSHA; CCS; DNV-GL; ABS; FRAS
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H10104076* | 76 | -48 | 3” | 87.8 | 3.46 | 92.2 | 3.63 | 140 | 2,030 | 560 | 8,120 | 700 | 27.56 | 5,900 | 3.96 | IP+M01500-48 | – |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
