Technical Specifications:

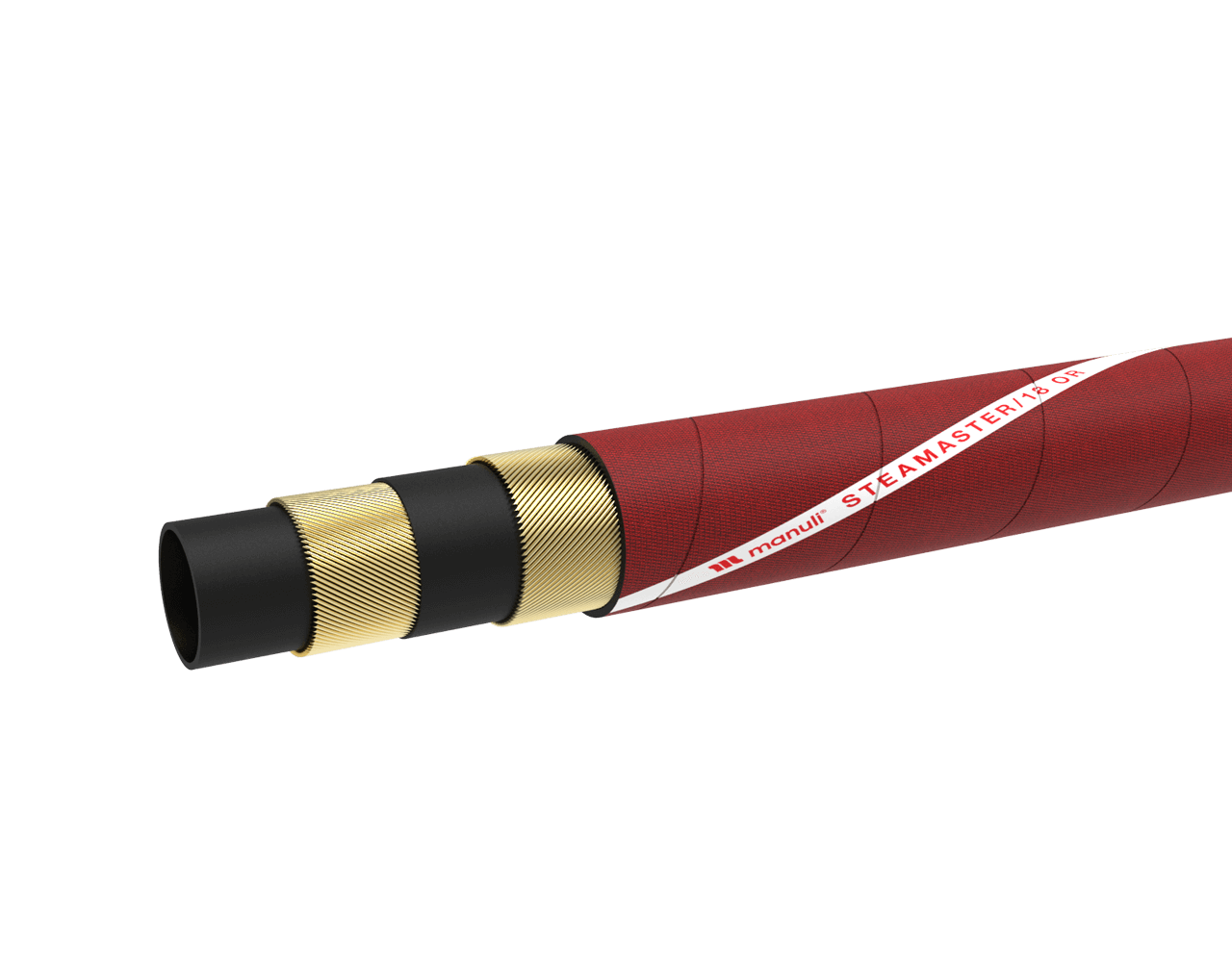

Delivery of high-pressure saturated steam. Suitable for steam cleaning of tanks and pipelines in the petrochemical industry.
WORKING PRESSURE: 18 bar / 270 psi.
TUBE: Black, EPM rubber.
REINFORCEMENT: High tensile steel reinforcement.
COVER: Red, synthetic EPM pin-pricked rubber. Long-lasting oil, abrasion, weathering and ozone resistant. Mylar layline for positive, permanent identification.
FEATURES: Hardwall delivery structure; Compact, lightweight and flexible; Highly robust hose structure; Long lasting in severe applications.
Long length assemblies available – Max. length: 40m
APPLICABLE SPECS: ISO 6134 – Type 2 Class A Grade M
TEMPERATURE RANGE: From -40°C to +210°C (-40°F to +410°F).

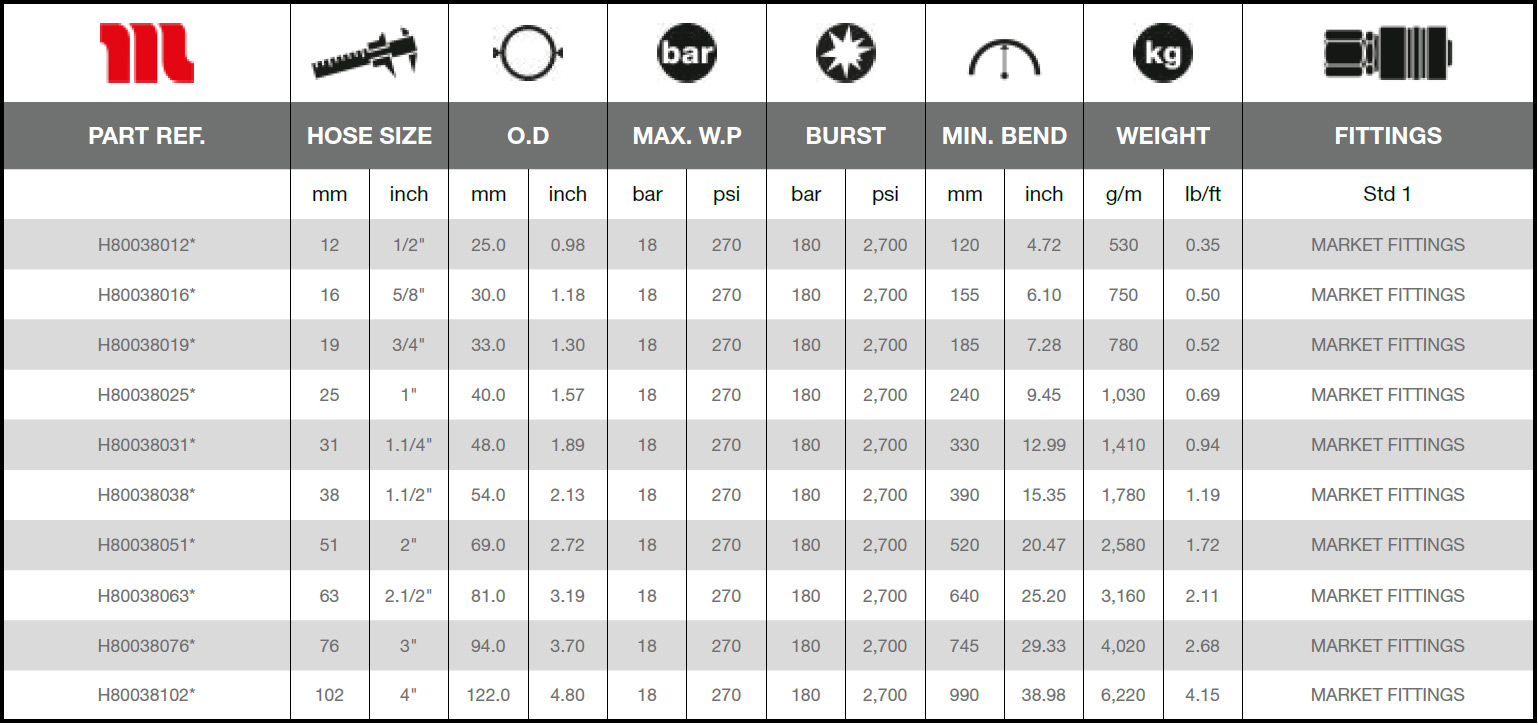

STEAMER/18 OR | MATCH COUPLING SERIES | ||
PART NO | HOSE SIZE | TWO-PIECE | |
HOSE | DN | DASH | SKIVE |
H80038012 | 12 | -08 | MARKET FITTINGS |
H80038016 | 16 | -10 | MARKET FITTINGS |
H80038019 | 19 | -12 | MARKET FITTINGS |
H80038025 | 25 | -16 | MARKET FITTINGS |
H80038031 | 31 | -20 | MARKET FITTINGS |
H80038038 | 38 | -24 | MARKET FITTINGS |
H80038051 | 51 | -32 | MARKET FITTINGS |
H80038063 | 63 | -40 | MARKET FITTINGS |
H80038076 | 76 | -48 | MARKET FITTINGS |
H80038102 | 102 | -64 | MARKET FITTINGS |
