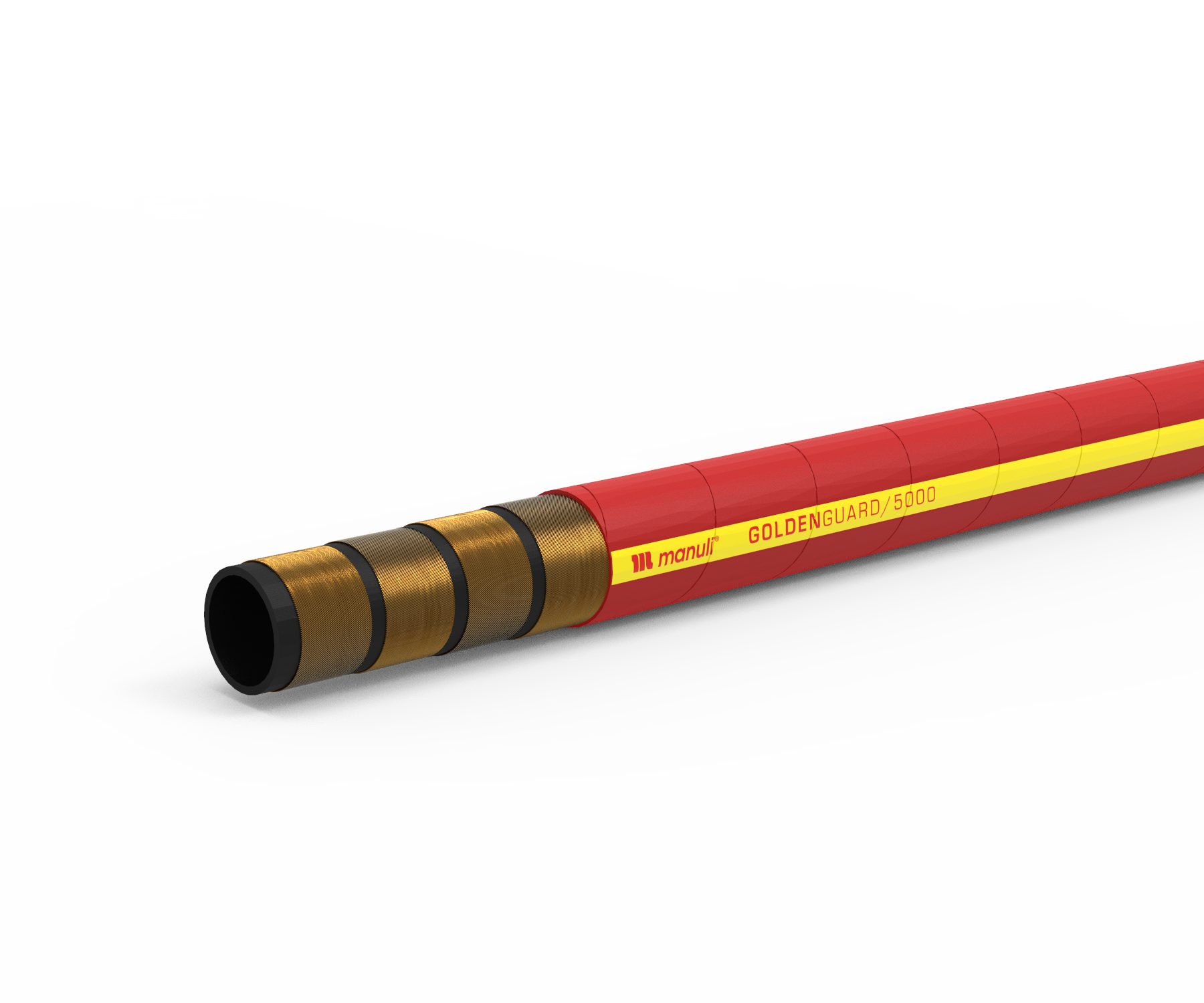

GOLDENGUARD/5000

EMERGENCY HYDRAULIC SYSTEMS & BOP

KEY FEATURES

• Highly robust hose structure
• Thermal insulation of the hose with a special cover material
• Long lasting resistance of the cover layer
• Cover has flame retardant properties
• High ozone and weather resistance

APPLICATIONS & FLUIDS

  • Hydraulics: designed for use in areas where the continuous hydraulic function is required to drive the emergency systems (industrial, marine, off-shore and refineries, defence, mining)
  • Flexible hose for hydraulic systems of Blow Out Preventer control lines on drilling rigs
  • Mineral oils, glycols and polyglycols, mineral oils in aqueous emulsion

CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
121 °C, 250 °F

TUBE
High grade NBR oil resistant synthetic rubber

REINFORCEMENT
Multiple plies of high tensile steel wire spirals (DN 16-25); 2 wire braids (DN 10-12)

COVER
Red insulant and flame retardant synthetic rubber

APPLICABLE SPECS
API 16D Fire Test (pr.10.1.2), DN 10-12: ISO 18752-A; DN 16-51: ISO 18752-C (STD2 fitting) and Type C “Plus” (STD1 fiting), ISO 3862 & SAE J517-100R13 performance

TYPE APPOVALS
DNV-GL; CU-TR; MSHA; API 16D Fire Test (DNV); LR; CCS; ABS

REMARKS
Refer to GoldenGuard assembling instructions and crimp chart for the use of accessories when required:
– STD1 fitting solution: Fire sleeve & metal sleeve over the fitting area required
– STD2 fitting solution: No accessories required
The STD1 fitting solution has been selected for the most demanding applications
DN 10 & 12: Max. continuous temperature 100 °C for these wire braided references

TECHNICAL DATA
# # # # # # # # #
PART REF. HOSE SIZE R.O.D O.D MAX. W.P BURST MIN. BEND WEIGHT FITTINGS
  DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft Std 1 Std 2
H11020010* 10 -6 3/8” 16.7 0.66 20.7 0.81 345 5,000 1,380 20,010 127 5.00 651 0.44 MF+M00920-06 OPK-06
H11020012* 12 -8 1/2” 20.1 0.79 24.1 0.95 345 5,000 1,380 20,010 150 5.91 820 0.55 MF+M00910-08 OPK-08
H11020016* 16 -10 5/8” 25.5 1.00 30.9 1.22 345 5,000 1,380 20,010 180 7.09 1,490 1.00 IP+M01500-10
H11020019* 19 -12 3/4” 29.0 1.14 36.2 1.43 345 5,000 1,380 20,010 240 9.45 2,024 1.36 IP+M01500-12 SP+M05400-12
H11020025* 25 -16 1” 36.0 1.42 44.0 1.73 345 5,000 1,380 20,010 300 11.81 2,742 1.84 IP+M01500-16 SP+M05400-16
H11020031* 31 -20 1.1/4” 47.0 1.85 55.0 2.17 345 5,000 1,380 20,010 420 16.54 4,293 2.88 IP+M01600-20 SP+M05500-20
H11020038* 28 -24 1.1/2” 54.6 2.15 62.6 2.46 345 5,000 1,380 20,010 500 19.69 5,531 3.72 IP+M01600-24 SP+M05500-24
H11020051* 51 -32 2” 68.4 2.69 76.4 3.01 345 5,000 1,380 20,010 630 24.80 7,712 5.18 IP+M01800-32 SP+M05500-32

DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
