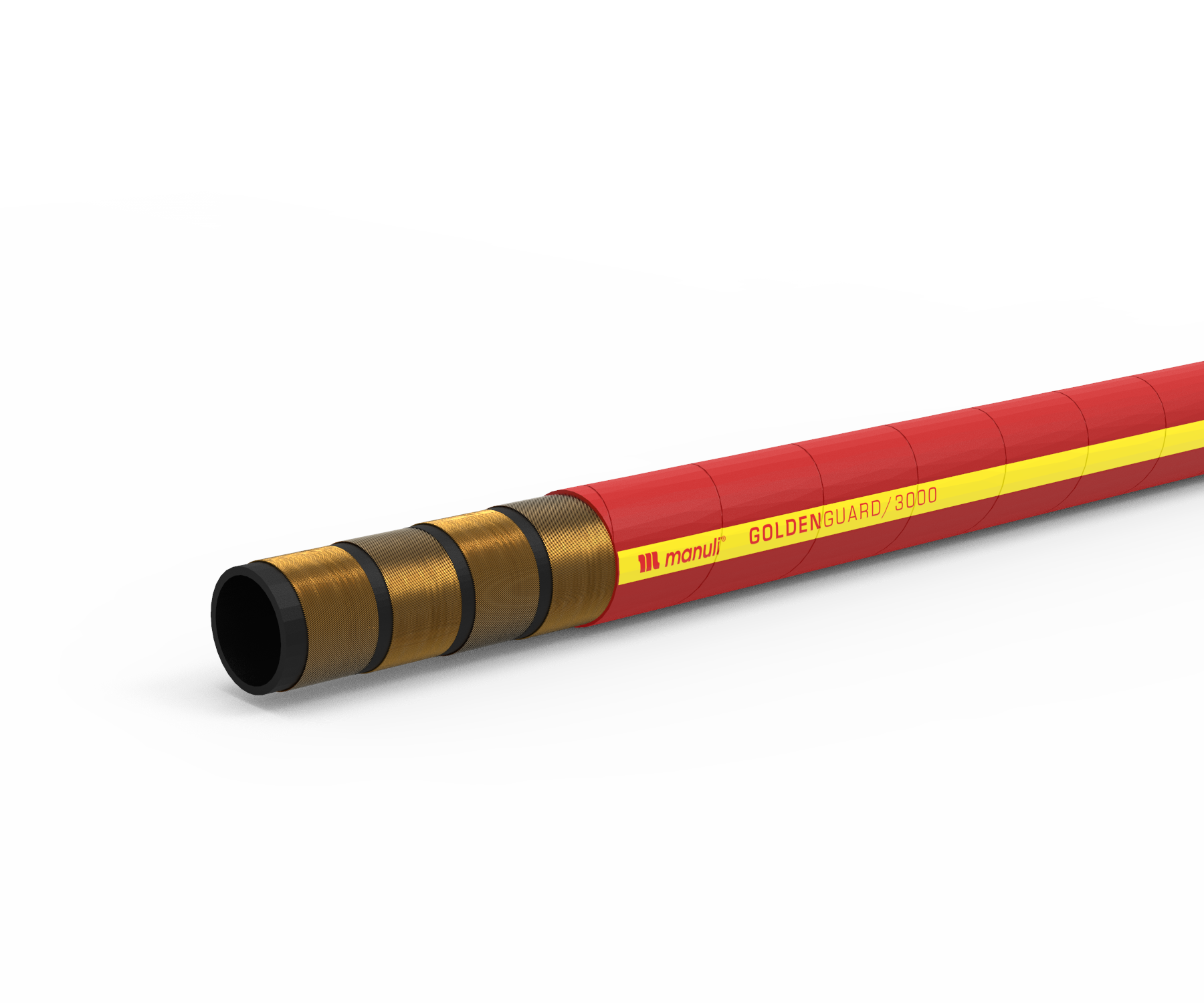

GOLDENGUARD/3000
EMERGENCY HYDRAULIC SYSTEMS & BOP
KEY FEATURES
• Highly robust hose structure
• Thermal insulation of the hose with a special cover material
• Long lasting resistance of the cover layer
• Cover has flame retardant properties
• High ozone and weather resistance
APPLICATIONS & FLUIDS
- Hydraulics: designed for use in areas where the continuous hydraulic function is required to drive the emergency systems (industrial, marine, off-shore and refineries, defence, mining)
- Flexible hose for hydraulic systems of Blow Out Preventer control lines on drilling rigs
- Mineral oils, glycols and polyglycols, mineral oils in aqueous emulsion
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
121 °C, 250 °F
TUBE
High grade NBR oil resistant synthetic rubber
REINFORCEMENT
Four high tensile steel spirals
COVER
Red insulant and flame retardant synthetic rubber
APPLICABLE SPECS
API 16D Fire Test (pr.10.1.2), ISO 18752-C
TYPE APPOVALS
DNV-GL; CU-TR; MSHA; API 16D Fire Test (DNV); LR; CCS; ABS
MARKS
Refer to GoldenGuard assembling instructions and crimp chart for correct assembling (partial skive required)
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H11022019* | 19 | -12 | 3/4” | 26.9 | 1.06 | 32.3 | 1.27 | 207 | 3,000 | 828 | 12,000 | 180 | 7.09 | 1,288 | 0.87 | OPK-12 | – |
| H11022025* | 25 | -16 | 1” | 34.1 | 1.34 | 40.1 | 1.58 | 207 | 3,000 | 828 | 12,000 | 230 | 9.06 | 1,876 | 1.26 | OPK-16 | – |
