GOLDENARMOUR

EMERGENCY HYDRAULIC SYSTEMS & BOP

TECHNICAL DATA
# # # #

PROOF
TEST

 # #
PART REF. HOSE TYPE HOSE SIZE MAX. W.P BURST TEST FITTINGS ACCESSORIES
DN dash inch bar psi bar psi bar psi Armour Guard
H01139010* ROCKMASTER/2 PLUS SAW 10 -6 3/8” 345 5,000 1,380 20,000 690 10,000 MF+IM00920-06 JP45G090280099
H01139012* ROCKMASTER/2 PLUS SAW 12 -8 1/2” 345 5,000 1,380 20,000 690 10,000 MF+IM00910-08 JP45G090320099
H10044016* ROCKMASTER/4SH 16 -10 5/8” 345 5,000 1,380 20,000 690 10,000 IP+IM01500-10 JP45G090400099
H10035019* ROCKMASTER/13 19 -12 3/4” 345 5,000 1,380 20,000 690 10,000 IP+IM01500-12 JP45G090450099
H10035025* ROCKMASTER/13 25 -16 1” 345 5,000 1,380 20,000 690 10,000 IP+IM01500-16 JP45G090500099
H10035032* ROCKMASTER/13 31 -20 1.1/4” 345 5,000 1,380 20,000 690 10,000 IP+IM01600-20 JP45G090650099
H10035040* ROCKMASTER/13 38 -24 1.1/2” 345 5,000 1,380 20,000 690 10,000 IP+IM01600-24 JP45G090750099
H10035051* ROCKMASTER/13 51 -32 2” 345 5,000 1,380 20,000 690 10,000 IP+IM01800-32 JP45G090900099

KEY FEATURES

• Highly robust hose structure
• Thermal insulation of the hose with a stainless steel armour cover
• Long lasting resistance of the cover layer
• Flame retardant properties
• High ozone and weather resistance

APPLICATIONS & FLUIDS

• Hydraulics: designed for use in areas where the continuous hydraulic function is required to drive the emergency systems (industrial, marine, off-shore and refineries, defence, mining)
• Flexible hose for hydraulic systems of Blow Out Preventer control lines on drilling rigs
• Mineral oils, glycol and polyglycol based oils, mineral oils in aqueous emulsion

CONTINUOUS SERVICE TEMPERATURE RANGE

-40 °C, -40 °F
100 °C, 212 °F (DN 10 & DN12); 121 °C, 250 °F (DN 16 – DN 51)

TUBE

High grade NBR oil resistant synthetic rubber

REINFORCEMENT

Two high tensile steel braids (DN 10-12); Multiple plies of high tensile steel spirals (DN 16-51)

COVER

STRONG – TYPE “SD”
Synthetic rubber with high abrasion, ozone, weather and heat resistance

APPLICABLE SPECS

API 16D Fire Test (pr.10.1.2);
ISO 18752-A (DN 10-12);
ISO 18752-C, ISO 3862, SAE J517 Type 100R13 performance (DN 16-51)

TYPE APPROVALS

DNV-GL; LR; API 16D Fire Test (DNV); ABS; CCS; CU-TR

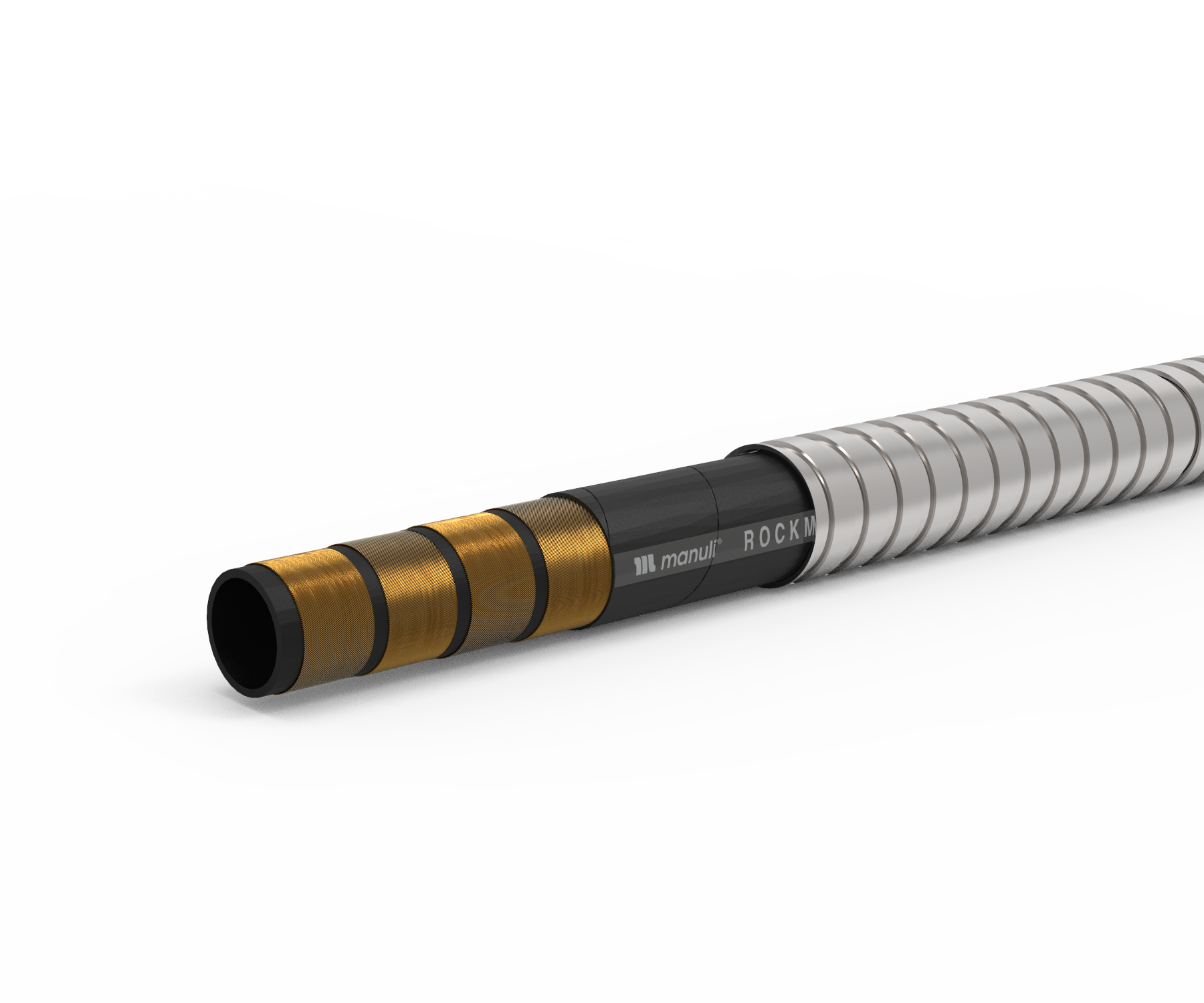

GOLDENARMOUR MAKE-UP
# 1. Hydraulic hose
2. Hydraulic MF2000 insert type, with additional tail o-ring only for IP fitting solution
3. Hydraulic MF2000 ferrule type
4. External flexible Metal Armour (interlocked flexible metal hose)
5. Metal Sleeve
ACCESSORIES TECHNICAL DATA
# # # # # # #
ARMOUR
PART REF.		 TO SUIT
HOSE SIZE		 ARMOUR
SIZE		 MIN. BEND WEIGHT METAL SLEEVE ARMOUR JOINT
d D PART REF. D L PART REF. D L
DN dash inch mm inch mm inch mm inch g/m lb/ft mm mm mm mm
JP45G090280099 10 -6 3/8” 25 1” 32.0 1.26 127 5.00 565 0.38 IO82110-06GA 40.5 60 IO84210-06 40.5 65
JP45G090320099 12 -8 1/2” 31 1.1/4” 36.5 1.44 150 5.91 703 0.47 IO82110-08GA 46.8 75 IO84210-08 46.8 65
JP45G090400099 16 -10 5/8” 38 1.1/2” 44.5 1.75 180 7.09 939 0.63 IO82110-10GA 53.2 90 IO84210-10 53.2 65
JP45G090450099 19 -12 3/4” 46 1.3/4” 51.0 2.01 240 9.45 1,118 0.75 IO82110-12GA 59.5 105 IO84210-12 59.5 70
JP45G090500099 25 -16 1” 51 2” 57.5 2.26 300 11.81 1,301 0.87 IO82110-16GA 66.0 120 IO84210-16 66.0 75
JP45G090650099 31 -20 1.1/4” 63 2.1/2” 70.0 2.76 420 16.54 1,636 1.10 IO82110-20GA 78.6 135 IO84210-20 78.6 95
JP45G090750099 38 -24 1.1/2” 76 3” 82.5 3.27 500 19.69 1,920 1.29 IO82110-24GA 91.5 150 IO84210-24 91.5 105
JP45G090900099 51 -32 2” 89 3.1/2” 96.0 3.78 630 24.80 2,386 1.60 IO82110-32GA 106.5 165 IO84210-32 106.5 115
ARMOUR JOINING PROCEDURE
Individual pieces of the GoldenArmour metal sleeve can be joined using a dedicated Armour Joint. The procedure for joining the pieces of flexible armour is as follows:
1. Slide the Armour Joint onto the hose. #
2. Insert the first piece of flexible armour into the Armour Joint until it reaches the internal stop. #
3. Insert the second piece of flexible armour into the other side of the Armour Joint until it also reaches the internal stop #
