Technical Specifications:

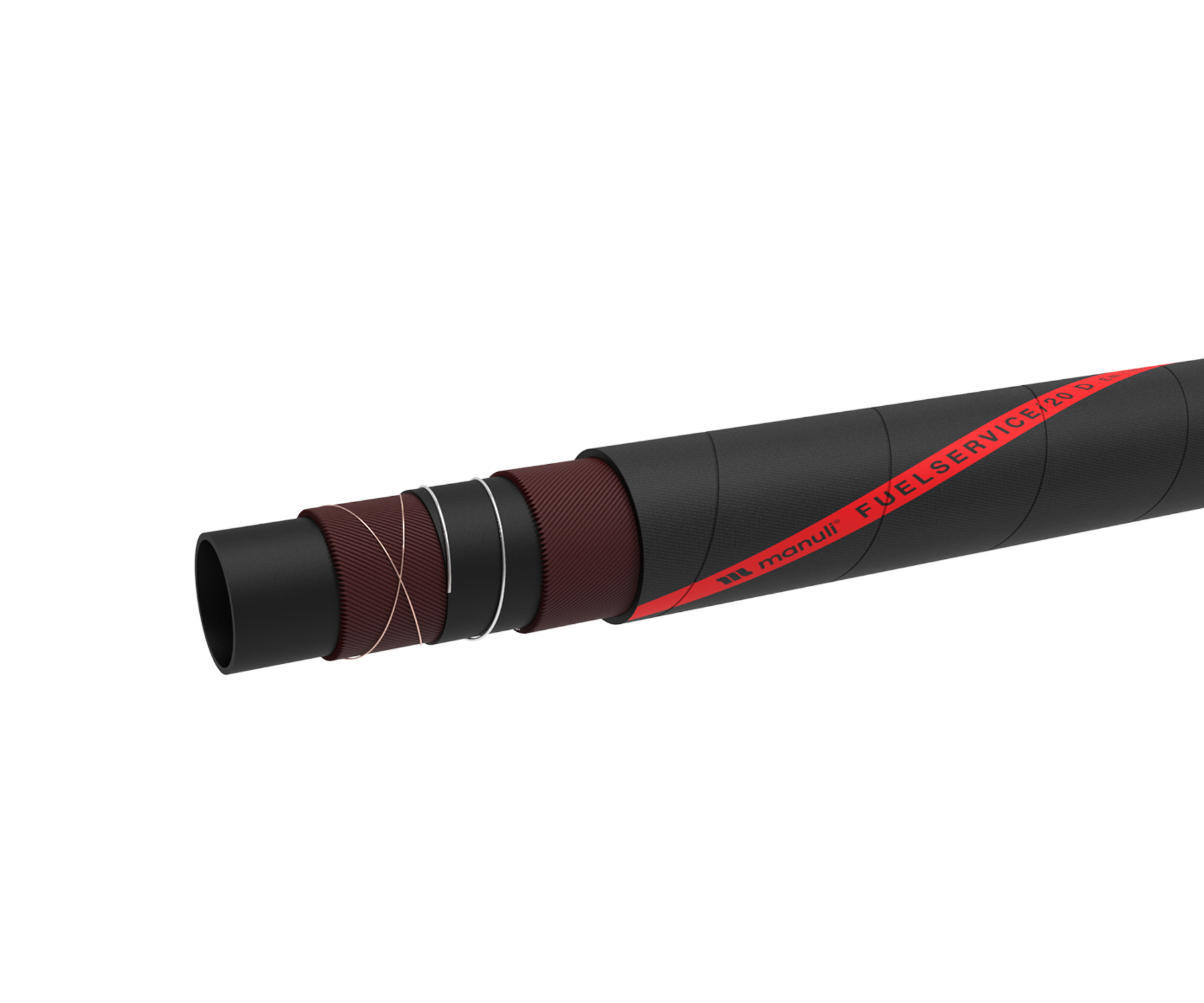

Suction and delivery hose for fuels, oils and petroleum and its derivatives with aromatic content up to 50%. Use for aircraft ground refuelling.
WORKING PRESSURE: 20 bar / 300 psi.
TUBE: Black NBR anti-static rubber.
REINFORCEMENT: High tensile synthetic cord with steel helix body wire and two crossing copper wires for grounding.
COVER: Black, synthetic CR rubber; fireproof and anti-static (R<106 Ohm/m), chemical, ozone and weathering resistant. Mylar layline for positive, permanent identification.
FEATURES: Hardwall suction and delivery structure; Compact, lightweight and flexible. Highly robust hose structure; Long lasting in severe applications.
Long length assemblies available – Max. length: 61m
APPLICABLE SPECS: EN 1825 Type E / TRbF
TEMPERATURE RANGE: From -30°C to +70°C (-22°F to +158°F).

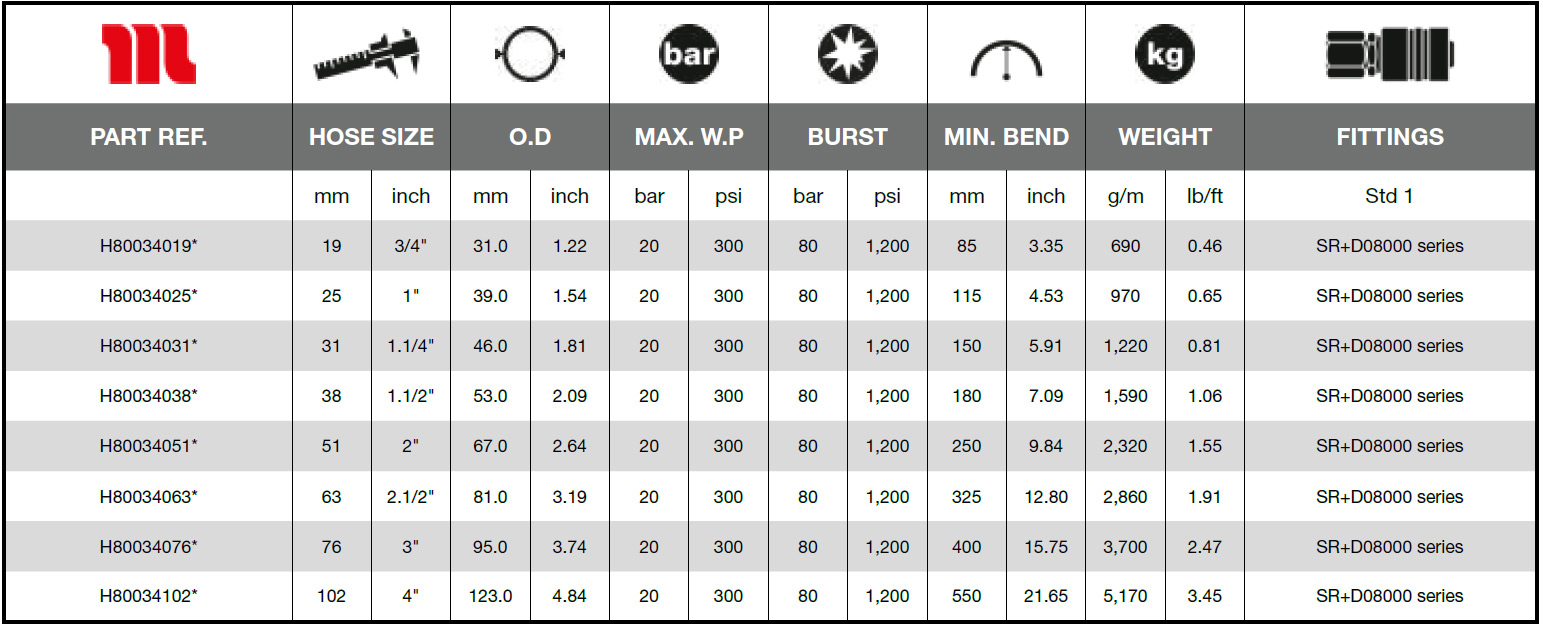

FUELSERVICE/20 SD EN 1825-E | MATCH COUPLING SERIES | ||
PART NO | HOSE SIZE | TWO-PIECE | |
HOSE | DN | DASH | SKIVE |
H80034019 | 19 | -12 | SR+D08000 SERIES |
H80034025 | 25 | -16 | SR+D08000 SERIES |
H80034031 | 31 | -20 | SR+D08000 SERIES |
H80034038 | 38 | -24 | SR+D08000 SERIES |
H80034051 | 51 | -32 | SR+D08000 SERIES |
H80034063 | 63 | -40 | SR+D08000 SERIES |
H80034076 | 76 | -48 | SR+D08000 SERIES |
H80034102 | 102 | -64 | SR+D08000 SERIES |
